TWPro Twin Wall Chest Mounting Plate 150mm Matt Black KW

£83.00 £99.60 (inc VAT)

In stock

Product Description

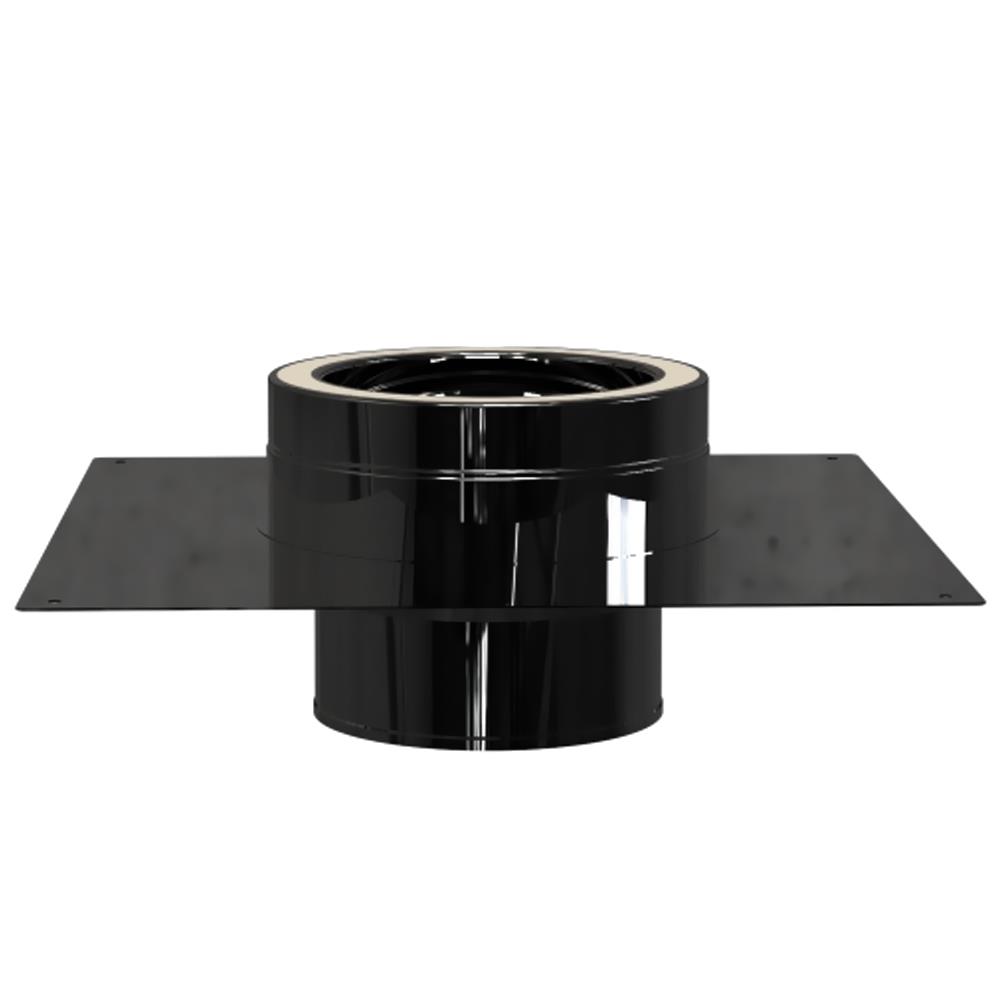

TWPro Twin Wall Chest Mounting Plate 150mm Matt Black

Model: 37-150-064

Transitional plate that converts Flexible flue liner to TWPro, the component is designed to be fixed onto the top of a lowered chimney stack. Please note the transition from flex to TWpro must be made in side the existing class 1 chimney stack.

Application

For use on solid fuel and gas/oil appliances. eg: woodstoves, gas coal effect fires, oil boiler and any solid fuel appliances.

Approvals

  • HETAS Approved
  • CE marked EN1856-1 T600 N1 W V2 L50040 G50
  • CE marked EN1856-1 T200 P1 W V2 L50040 O20

Information

  • TWPro Information Sheet
  • TWPro Installation Sheet
  • 25 Year Warranty (Conditions apply)
  • 2 Year Warranty on paint finish
  • Inner casing material – 0.4mm 316L Grade Stainless Steel
  • Outer casing material – 0.4mm 304 Grade Stainless Steel – Powder Coated
  • Insulation type – 25mm injected mineral wool, 190Kg/m³
  • Joint method – Push fit and locking band – FitSystem
  • Max operating temp – 600c

Distance to combustibles is 50mm.

TWPro Stainless Steel Flue System

This system was created exclusively for TWPro, in the UK it is also branded as KW Flue and makes installing chimneys quick and easy!.Super easy assembly. It takes one second and one hand to put two parts together including attaching the locking band! The wall bands are embedded in to the pipe itself, so no protrusions between one section and the next. Technical improvements in the insulation with G50 designation at 600°C, is the best available

Additional Information

Weight 5001 g
Manufacturer

Mi Flue

Brand

MPN

37-150-064

SKU

37-150-064

Unit Quantity

1

Warranty

25 Year Warranty

Shipping

Medium Item

Range

TWPro 6 Inch Black

condition

new

Woocategory1

Flues & Fittings

Woocategory3

TWPro 6 Inch Twin Wall Black

Woocategory2

Black Twin Wall Flue

Country/Region of Manufacture

United Kingdom

Finish

Matt Black

Colour

Matt Black

Style

Twin Wall Stove Pipe

Width

6 inch inner/8 inch outer skin

Hetas Approved

Yes

ccp_Type

Twin Wall Stove Pipe

Material

Stainless Steel

Standards

CE Marked

Inner Material

316L SS 0.40mm thick

Outer Material

304L SS 0.40mm thick

Distance From Combustibles

50mm

Manufacturer Warranty

25 Year
