Product Description

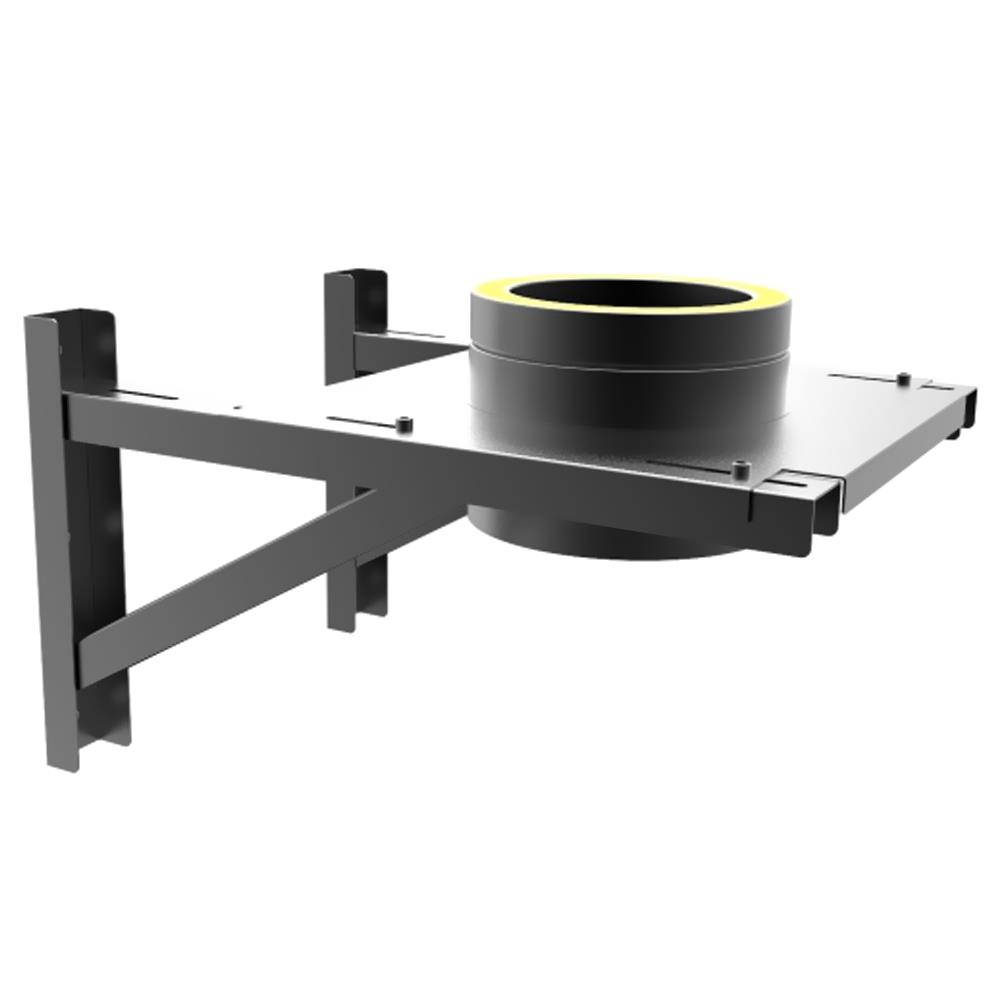

TWPro 150mm Twin Wall 80-280mm Adjustable Base Support 125mm Matt Black
Model: 37-150-063

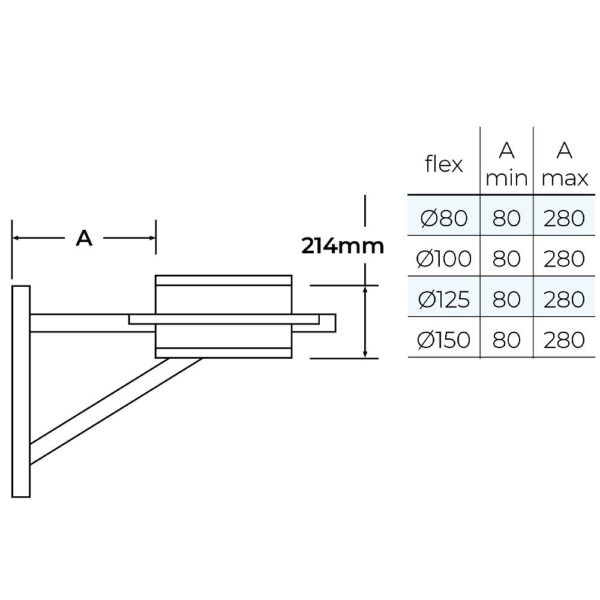

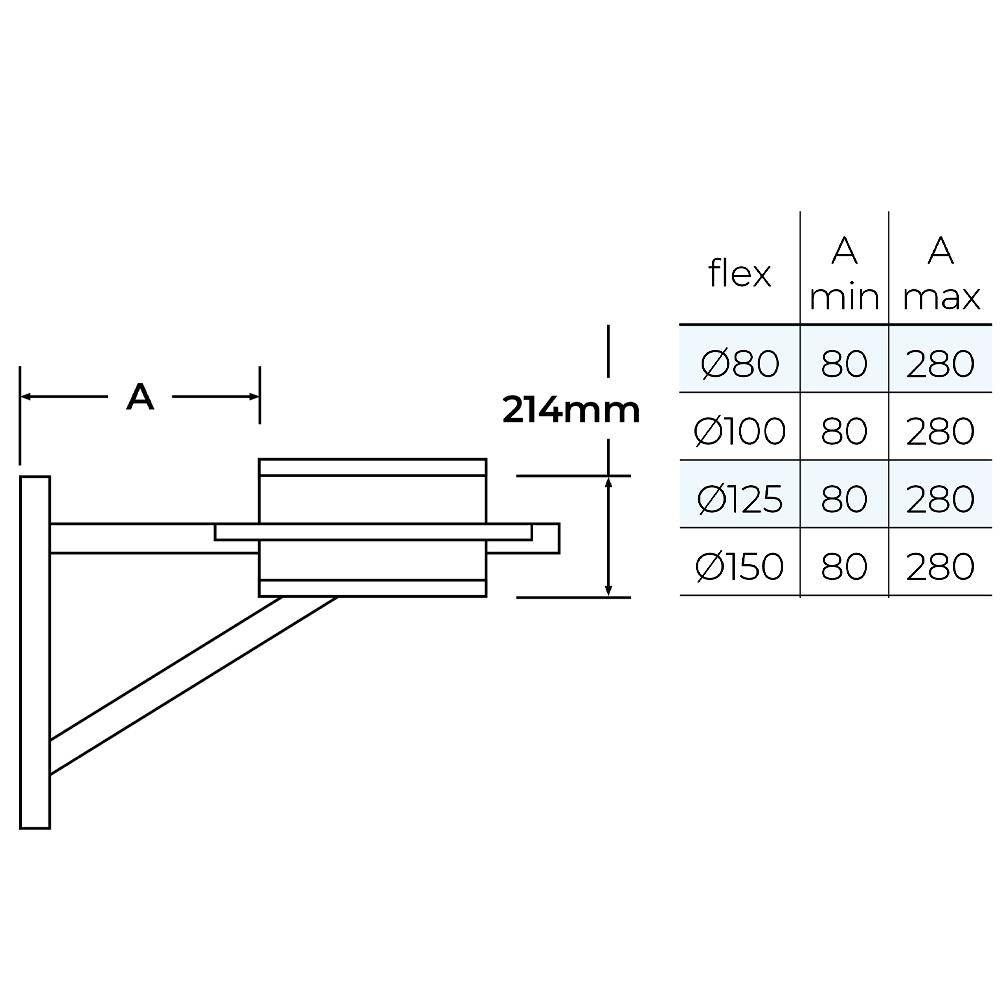

Adjustable base supports are used internally or externally to provide vertical support to the chimney. This support has an adjustment of 80mm to 280mm from the wall surface. Only recommended fixings should be used to fit this base support to the building surface.
Application
For use on solid fuel and gas/oil appliances. eg: woodstoves, gas coal effect fires, oil boiler and any solid fuel appliances.
Approvals
- HETAS Approved
- CE marked EN1856-1 T600 N1 W V2 L50040 G50
- CE marked EN1856-1 T200 P1 W V2 L50040 O20
Information
- TWPro Information Sheet
- TWPro Installation Sheet
- This will ONLY Fit TWPro and KW pipe and fittings, it is not interchangeable with any other make or system.
- Diameter is internal please add 50mm for the external measurement
- 25 Year Warranty (Conditions apply)
- 2 Year Warranty on paint finish
- Inner casing material – 0.4mm 316L Grade Stainless Steel
- Outer casing material – 0.4mm 304 Grade Stainless Steel – Powder Coated
- Insulation type – 25mm injected mineral wool, 190Kg/m³
- Joint method – Push fit and locking band – FitSystem
- Max operating temp – 600c
Distance to combustibles is 50mm.
TWPro Stainless Steel Flue System
This system was created exclusively for TWPro, in the UK it is also branded as KW Flue and makes installing chimneys quick and easy!Super easy assembly, it takes one second and one hand to put two parts together including attaching the locking band! The wall bands are embedded in to the pipe itself, so no protrusions between one section and the next. Technical improvements in the insulation with G50 designation at 600°C, is the best available.
Additional Information
Weight | 5001 g |
---|---|
Manufacturer | Mi Flue |
Brand | |
MPN | 37-150-063 |
SKU | 37-150-063 |
Unit Quantity | 1 |
Warranty | 25 Year Warranty |
Shipping | Medium Item |
Range | TWPro 6 Inch Black |
condition | new |
Woocategory1 | Flues & Fittings |
Woocategory3 | TWPro 6 Inch Twin Wall Black |
Woocategory2 | Black Twin Wall Flue |
Country/Region of Manufacture | United Kingdom |
Finish | Matt Black |
Colour | Matt Black |
Style | Twin Wall Stove Pipe |
Width | 6 inch inner/8 inch outer skin |
Hetas Approved | Yes |
ccp_Type | Twin Wall Stove Pipe |
Material | Stainless Steel |
Standards | CE Marked |
Inner Material | 316L SS 0.40mm thick |
Outer Material | 304L SS 0.40mm thick |
Distance From Combustibles | 50mm |
Manufacturer Warranty | 25 Year |
