Product Description

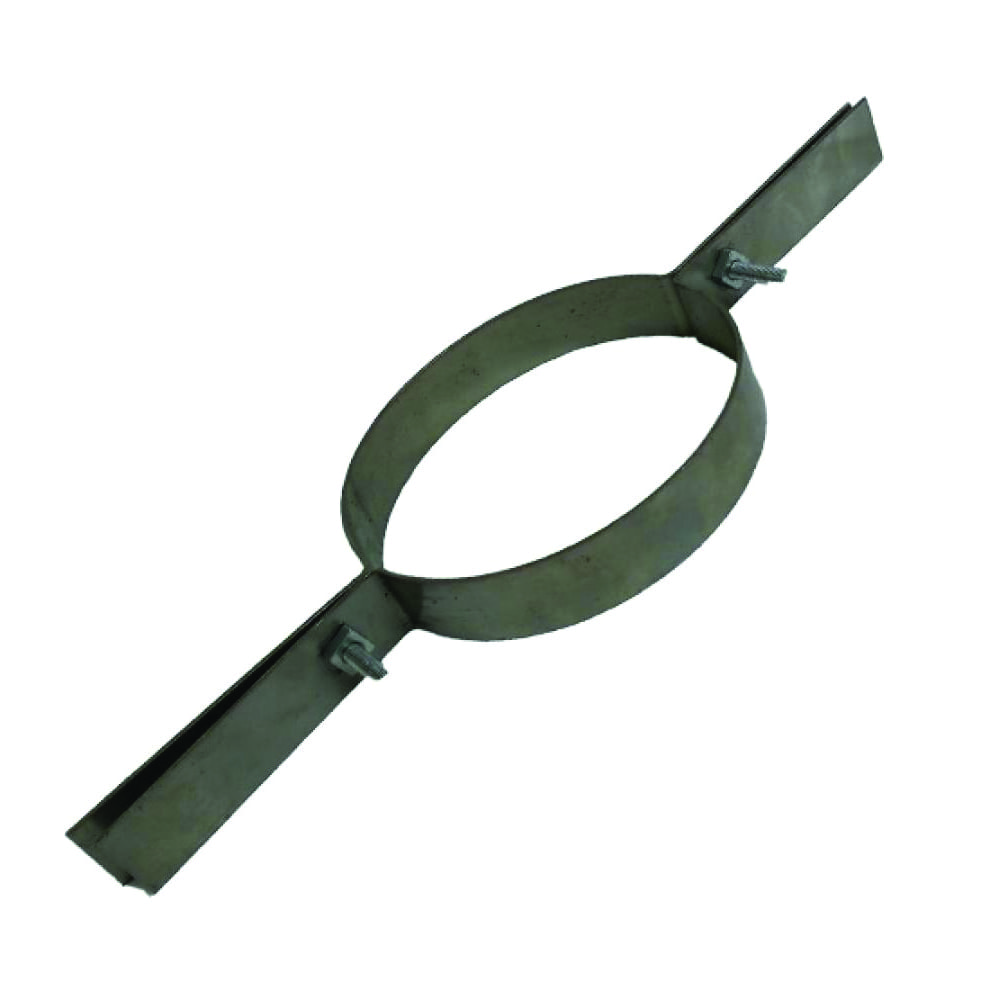

Top Clamp 125mm
Model: 20-125-C
Application
Used in conjunction with the top plate and top insert sleeve, this will support the weight of the liner at the top of the stack.
Construction
Glavanised steel.
Installation Check List
Place the top plate over the chimney recess at the top of the stack. The flue liner should protrude throught the top plate hole by approximately 100mm.Insert the top insert sleeve into the flue liner. Now place the top clamp over the flue liner and tighten the two nuts and bolts until the flue liner is secure against the top insert sleeve. Now apply a suitable acid resistant cement as a seal and weather proof render. While this cement is wet secure the chimney pot to this cement.
Maintenance
It is recommended that chimneys serving solid fuel appliances be swept and maintained as frequently as necessary but at least once a year.
Additional Information
Weight | 5001 g |
---|---|
Manufacturer | Mi-Flue |
Brand | |
MPN | 20-125-C |
SKU | 20-125-C |
Woocategory1 | Flues & Fittings |
Woocategory3 | 5 Inch (125mm) Flue Liner |
Woocategory2 | Flexible Flue Liner |
Local Pick Up          Free
England & Wales   £2.99
Scotland From       £3.99
Unfortunately we do not deliver to Ireland, Scottish Islands and Isle Of Wight.
If you need more infomation regarding delivery, please call 01843 842727 Mon to Fri 8am to 5pm.
