Product Description

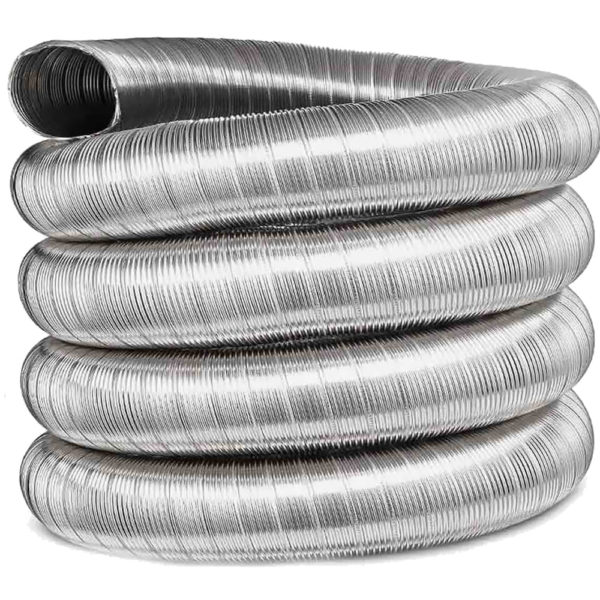

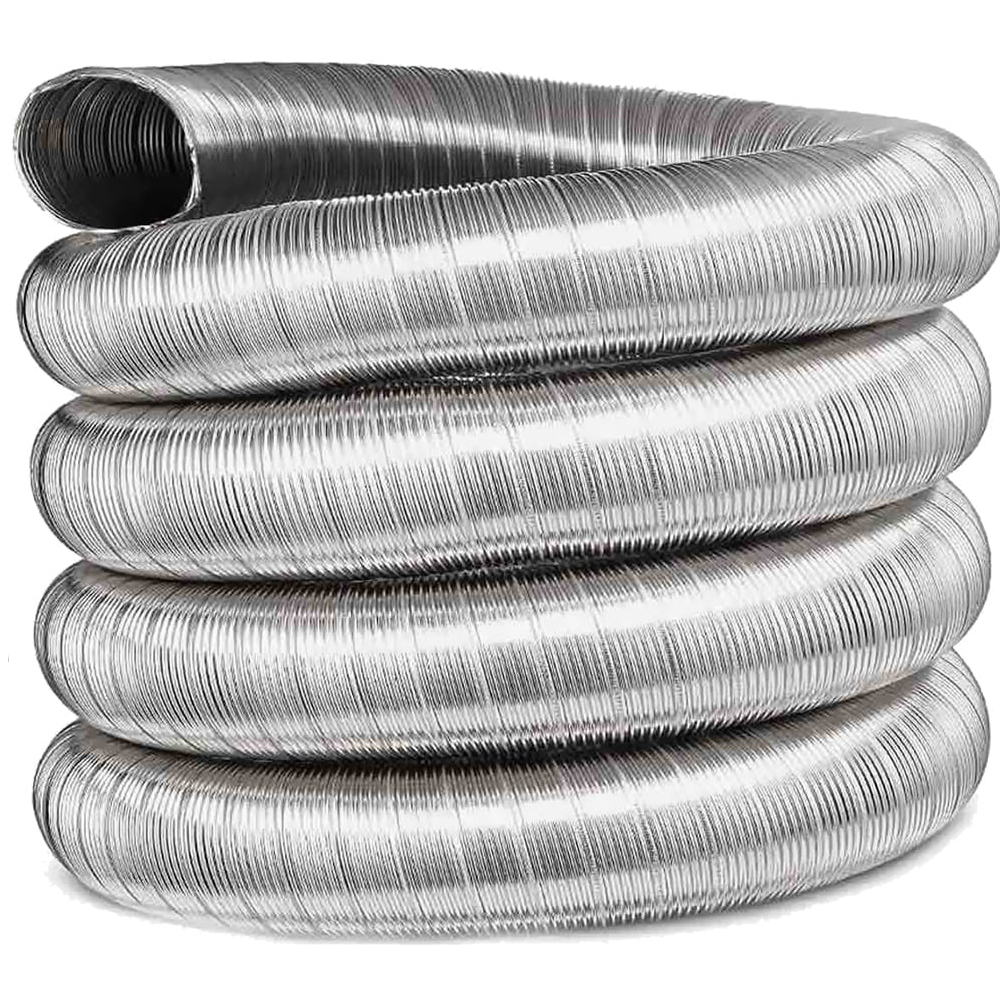

316/316 Solid Fuel Stainless Steel Flue Liner 6 inch 150mm
Model: 316/316 liner
Multi fuel flexible liner made from 316L grade stainless steel – LIFE TIME manufacturers warranty with this product (conditions apply)
A double skinned flexible flue liner suitable for relining within a masonry chimney.
Flue liner is suitable for use with burning gas, oil, dry logs, cured dry peat.If the appliance is mainly going to be used to burn wood, and the appliance is not DEFRA approved you should increase the diameter of the Flue Liner to 150mm (providing this will fit in the masonry chimney), as recommended by Building Regulations.
Approval
- Flue Liner is approved and listed by HETAS
- EN1856-2 T450 N1 D V 3 L50012 G
Fuels
- burning gas
- Oil
- Dry logs
Construction
The flue liner has a smooth inner liner made from 316L grade stainless steel and is 0.12mm thick. The flue liner has a convoluted outer skin made from 316L stainless steel and is 0.12mm thick. The Flue Liner is constructed from a single strip of steel which is bent at 180 degrees and then the seam is folded in four planes to give a quattrolock seal.
Installation Check List
- Make sure the liner will go down the chimney (this can be done by pulling down a small section of the diameter liner you will be using)
- Sweep your chimney
- Check you pot is in good condition, if you are NOT using a suspended cowl then remove the pot from the stack
Installation
It is recommended that chimneys serving solid fuel appliances be swept and maintained as frequently as necessary but at least once a year.
IMPORTANT BEFORE YOU BUY
Make sure you are ordering the correct size and length as this item is a made to measure service and cannot be returned Once ordered.
Additional Information
Weight | N/A |
---|---|
Dimensions | N/A |
Manufacturer | Mi Flue |
Brand | |
MPN | 35Z-155-1, 35Z-155-10, 35Z-155-11, 35Z-155-12, 35Z-155-13, 35Z-155-14, 35Z-155-15, 35Z-155-16, 35Z-155-17, 35Z-155-18, 35Z-155-19, 35Z-155-2, 35Z-155-20, 35Z-155-3, 35Z-155-4, 35Z-155-5, 35Z-155-6, 35Z-155-7, 35Z-155-8, 35Z-155-9 |
SKU | 35Z-155-1, 35Z-155-10, 35Z-155-11, 35Z-155-12, 35Z-155-13, 35Z-155-14, 35Z-155-15, 35Z-155-16, 35Z-155-17, 35Z-155-18, 35Z-155-19, 35Z-155-2, 35Z-155-20, 35Z-155-3, 35Z-155-4, 35Z-155-5, 35Z-155-6, 35Z-155-7, 35Z-155-8, 35Z-155-9 |
Woocategory1 | Flues & Fittings |
Woocategory3 | 6 Inch (150mm) Flue Liner |
Woocategory2 | Flexible Flue Liner |
Length | 10m, 11m, 12m, 13m, 14m, 15m, 16m, 17m, 18m, 19m, 1m, 20m, 2m, 3m, 4m, 5m, 6m, 7m, 8m, 9m |
Local Pick Up Free
Local Delivery £9.99 (on our own transport)
England & Wales £14.99
Scotland £165.00
Unfortunately we do not deliver to Ireland, Scottish Islands or above Glasgow and Isle Of Wight.
If you need more infomation regarding delivery, please call 01843 842727 Mon to Fri 8am to 5pm.
