Kit 1 Flue Liner Kit 316 150mm


Product Description

316 Solid Fuel Stainless Steel Flue Liner 6 inch 150mm Kit 1

Model: 316/316 liner Kit 1, 6 inch

Multi fuel flexible liner made from 316L grade stainless steel – Life Time manufacturers warranty on the flue liner (conditions apply) A double skinned flexible flue liner suitable for relining within a masonry chimney. Flue liner is suitable for use with burning gas, oil, dry logs, cured dry peat.

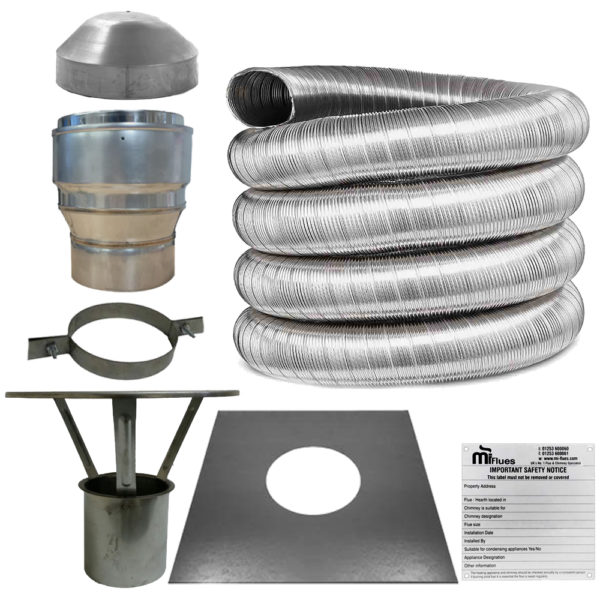

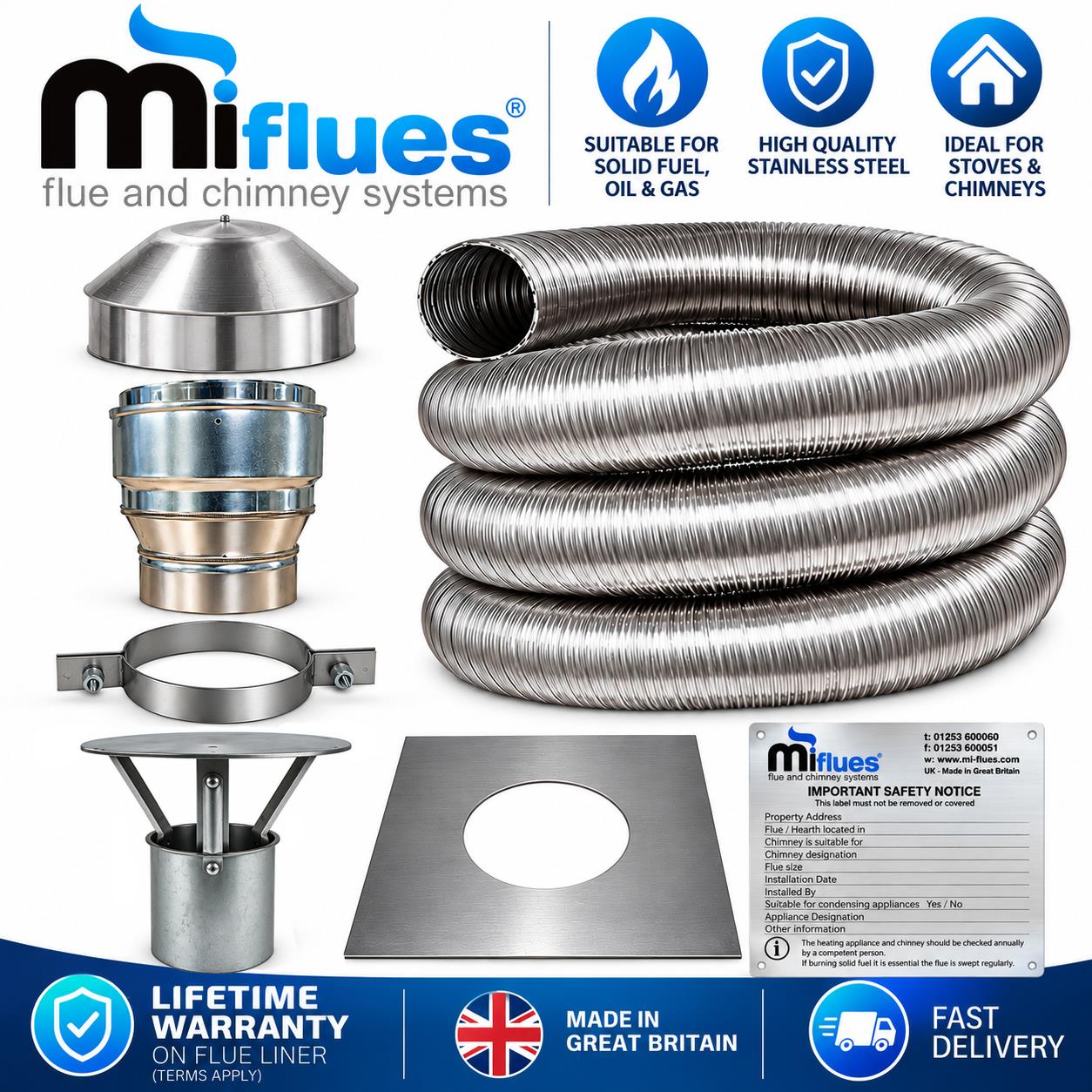

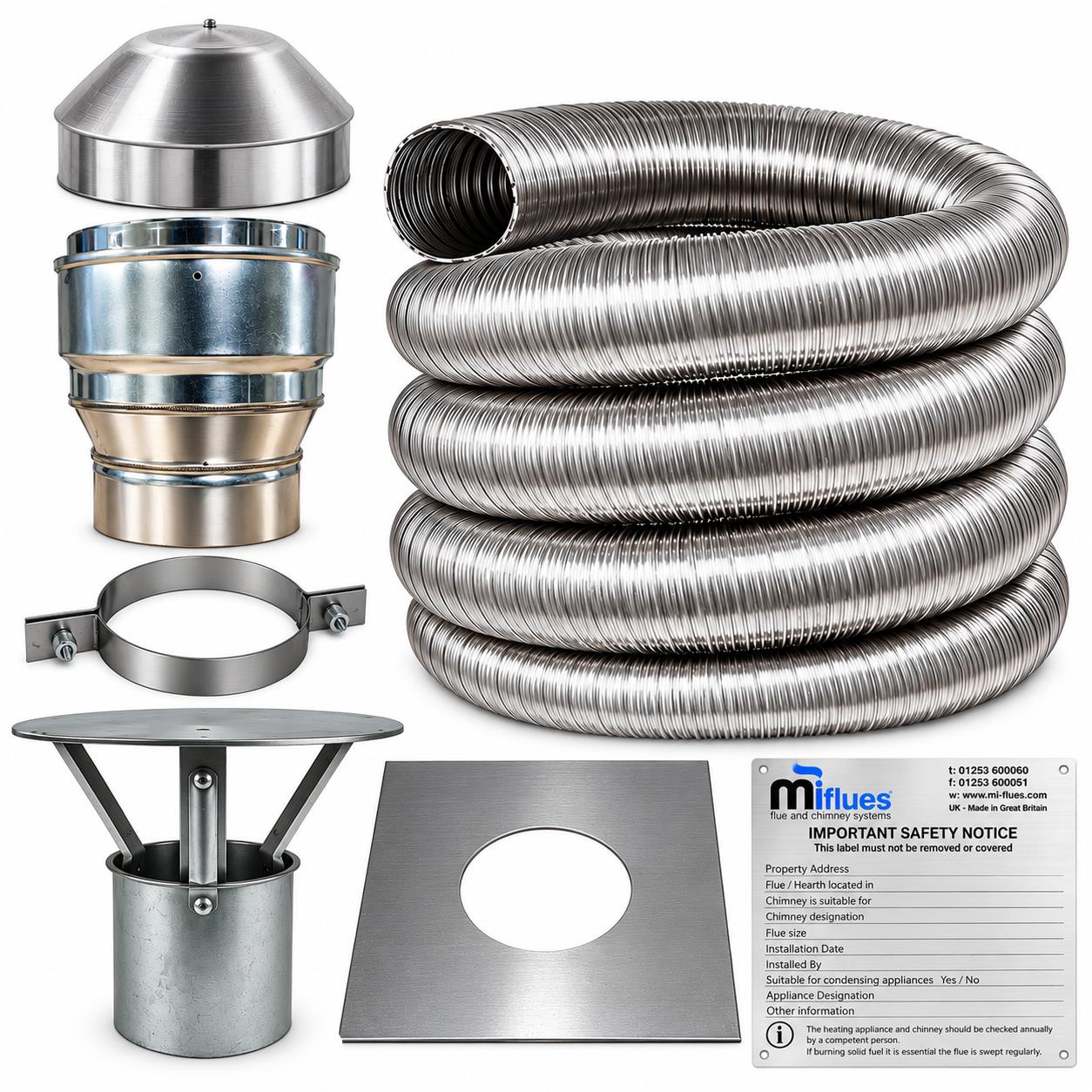

Whats Included in The Kit

  • 6 inch Flue Liner per meter is approved and listed by HETAS EN1856-2 T450 N1 D V 3 L50012 G
  • Nose cone
  • Top Clamp
  • Top Plate
  • ID Plate
  • Inset Rain Cap
  • Equal Vitreous to Flue Liner Adaptor
  • Approval – Listed by HETAS EN1856-2 T450 N1 D V 3 L50012 G
  • Fuels – Wood, Oil, Gas, Low Sulpher Coal

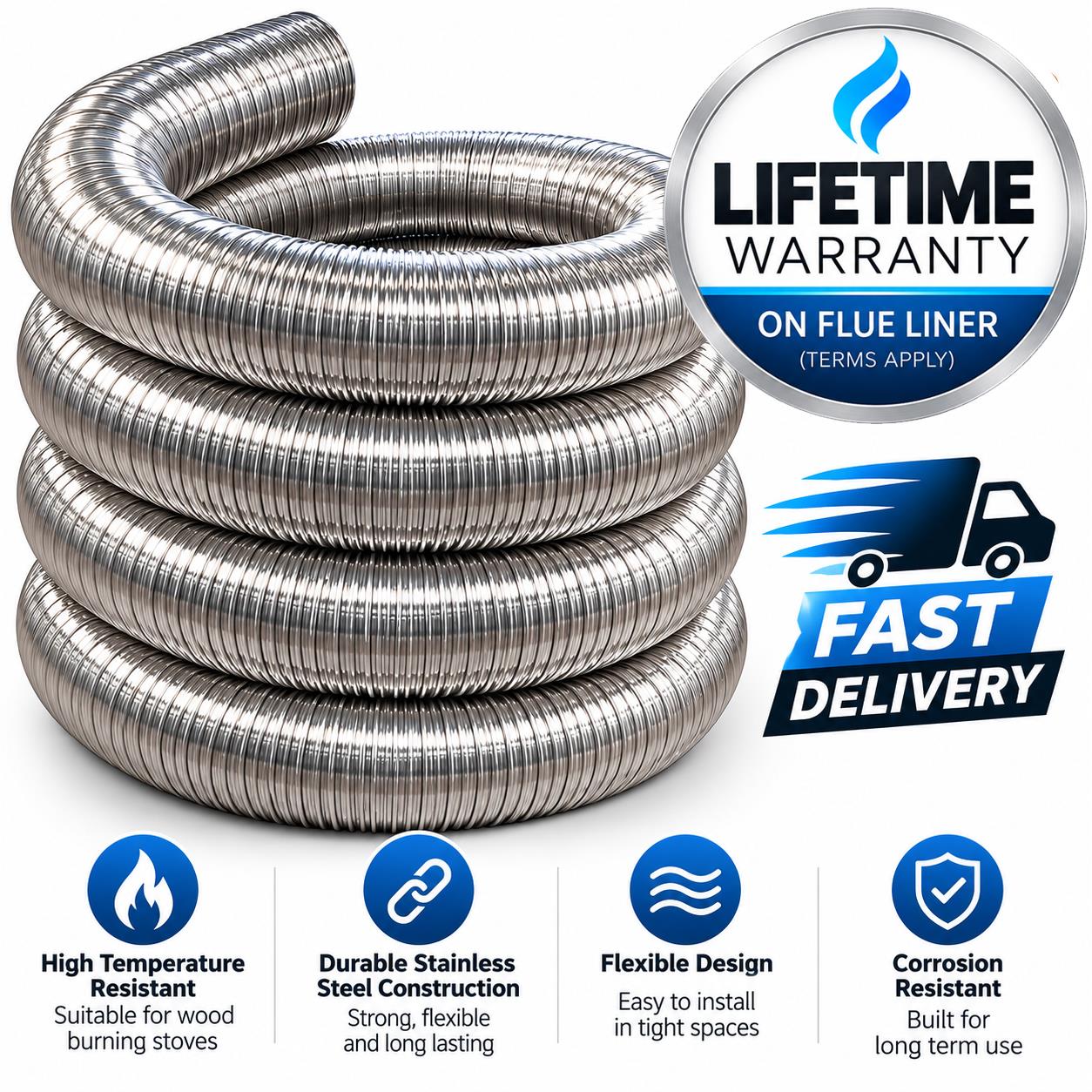

The flue liner has a smooth inner liner made from 316L grade stainless steel and is 0.12mm thick. The flue liner has a convoluted outer skin made from 316L stainless steel and is 0.12mm thick. The Flue Liner is constructed from a single strip of steel which is bent at 180 degrees and then the seam is folded in four planes to give a quattrolock seal.


It is recommended that chimneys serving solid fuel appliances be swept and maintained as frequently as necessary but at least once a year.


Make sure you are ordering the correct size and length as this item is a made to measure service and cannot be returned Once ordered.
