Top Plate 150mm

£10.00 £12.00 (inc VAT)

In stock

Product Description

Top Plate 150mm

Model: 20-150-P

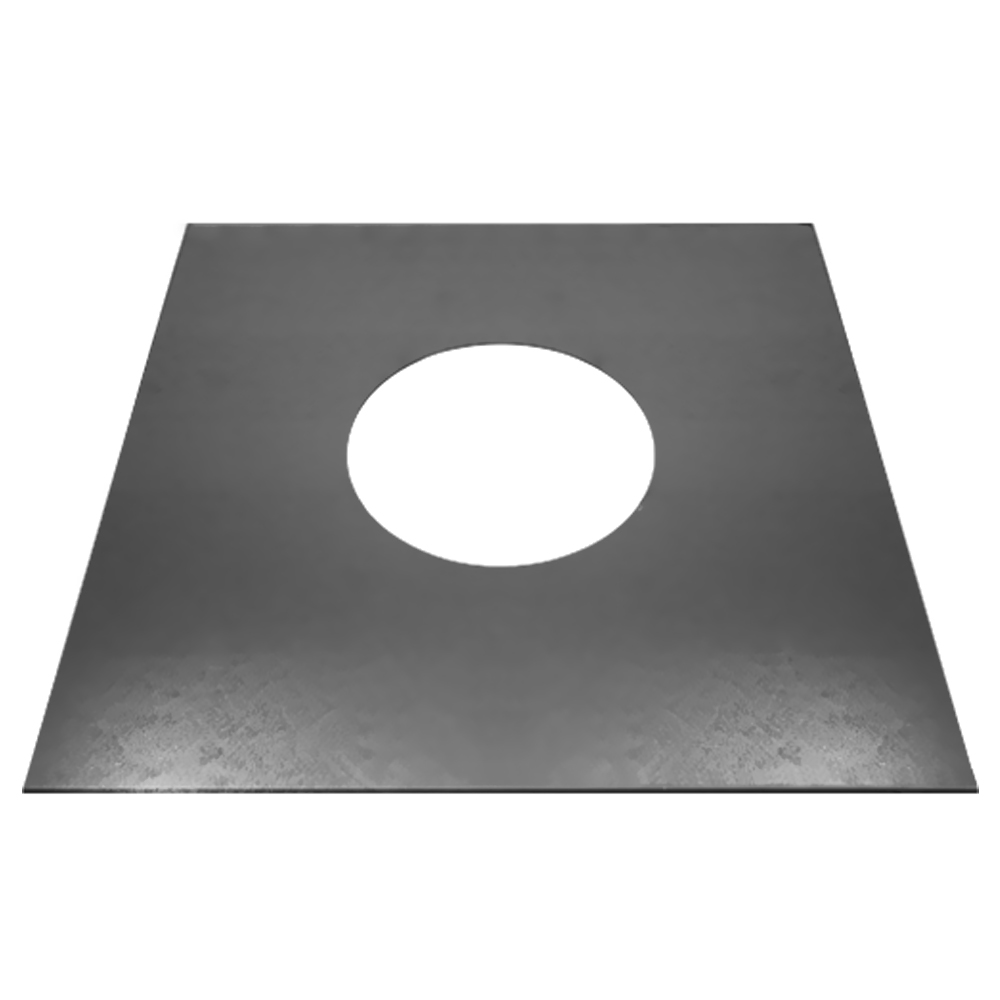

The plate measure 15 inch square (375mm) and is used in conjunction with the top clamp and top insert sleeve, this will support the weight of the liner at the top of the stack.

Application

Used in conjunction with the top clamp and top insert sleeve, the top plate supports the weight of the flue liner at the top of the stack.

Construction

The glavanised steel plate measure 15 inch square (375mm).

Installation Check List

Place the top plate over the chimney recess at the top of the stack.

The flue liner should protrude throught the top plate hole by approximately 100mm.Insert the top insert sleeve into the flue liner. Now place the top clamp over the flue liner and tighten the two nuts and bolts until the flue liner is secure againts top insert sleeve.

Now apply a suitable acid resistant cement as a seal and weather proof render. While this cement is wet secure the chimney pot to this cement.

Maintenance

It is recommended that chimneys serving solid fuel appliances be swept and maintained as frequently as necessary but at least once a year.



Additional Information

Weight 5001 g
Manufacturer

Mi-Flue

Brand

MPN

20-150-P

SKU

20-150-P

Woocategory1

Flues & Fittings

Woocategory3

6 Inch (150mm) Flue Liner

Woocategory2

Flexible Flue Liner













Local Pick Up           Free

England & Wales    £2.99

Scotland From        £3.99

Unfortunately we do not deliver to Ireland, Scottish Islands and Isle Of Wight.

If you need more infomation regarding delivery, please call 01843 842727 Mon to Fri 8am to 5pm.
