Product Description

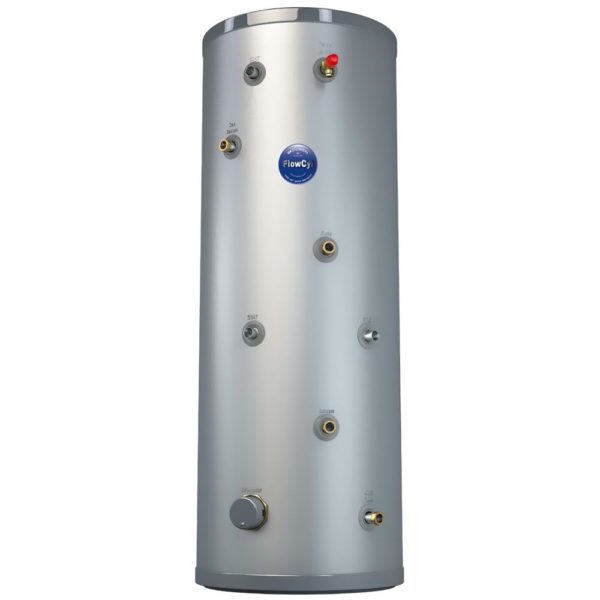

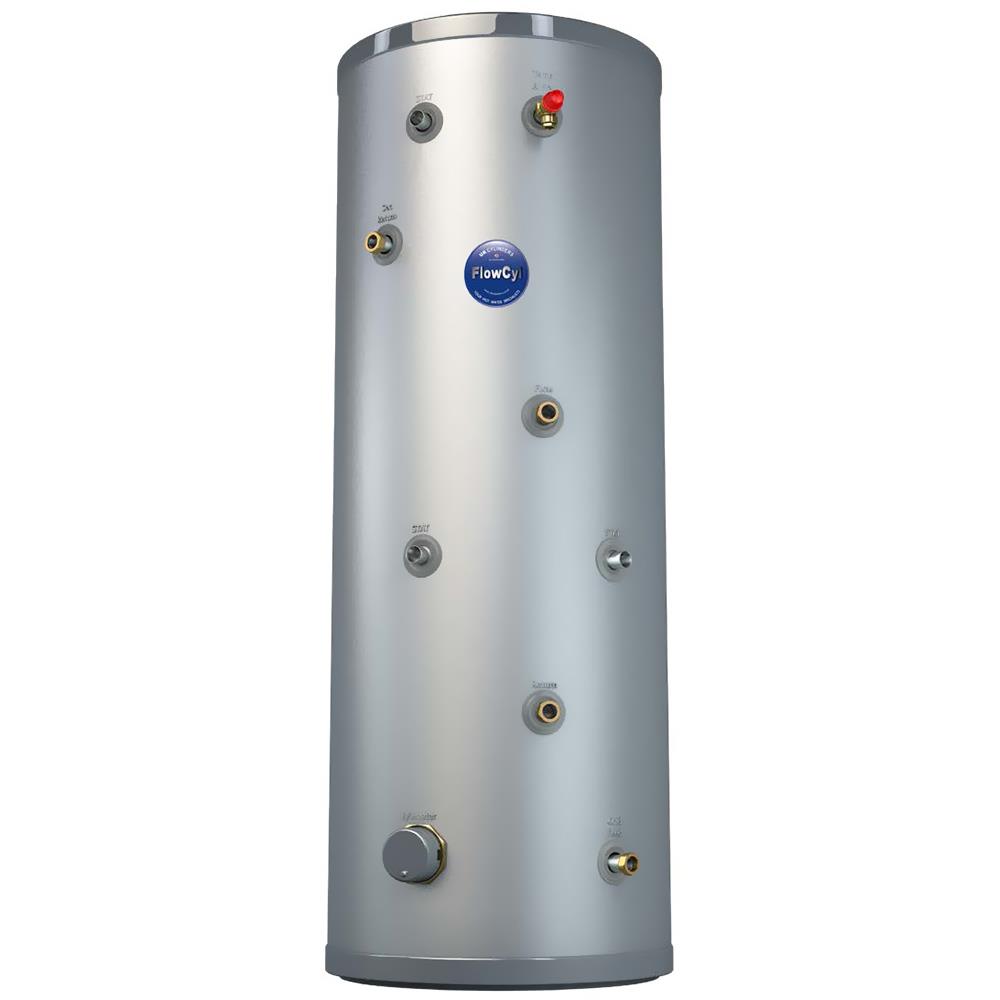

UK Cylinders FlowCyl Heat Pump Unvented 120L

Model: FCHPD3120

PLEASE NOTE: Delivery for this item is Mainland England ONLY

The FlowCyl heat pump range comes complete with all the fittings you will need for a complete trouble free installation. All the items provided in the unvented kit, ensure your installation meets Part G of the Building Regulations.

FlowCyl Heat Pump Unvented 120L Features:

• UK Cylinders Flowcyl Heatpump Information
• UK Cylinders Flowcyl Heatpump installation Guide
• 25 Year Warranty
• Capacity 120
• Height 888mm
• Diameter 545mm
• Weight – empty 27KG, full 145KG

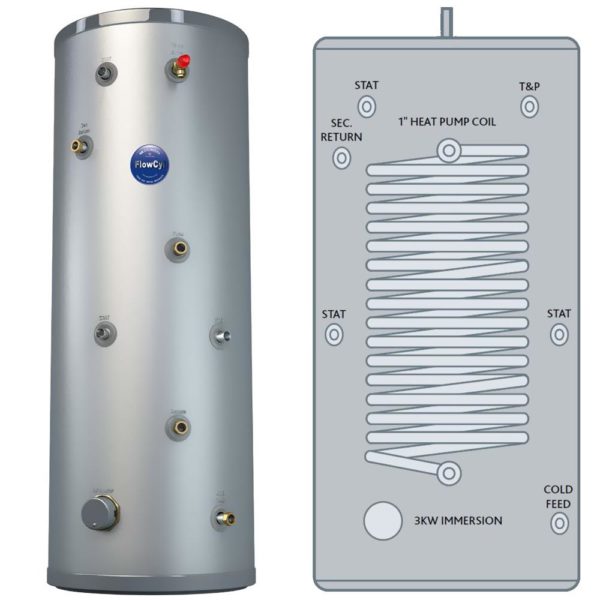

• Heat Pump Coil Surface area (1.61 m2)
• 12mm sensor probe pockets provided in both buffer and heat pump cylinder
• Secondary Return – No
• ERP Band – B
• Built in 3kW immersion as standard
• 28mm compression fittings as primary connections to coil
• Lightweight construction with high quality and 100% recyclable silver casing

What Do You Get In The Box?

• Stainless heat Pump cylinder
• Cold water inlet set
• Two port zone valve
• High limit stat
• Tundish
• 3kw immersion heater
• T&P relief valve
• T&P cover
• Expansion vessel and bracket

The Flowcyl is also supplied with a 25-year warranty and with high-quality components for peace of mind.
