Product Description

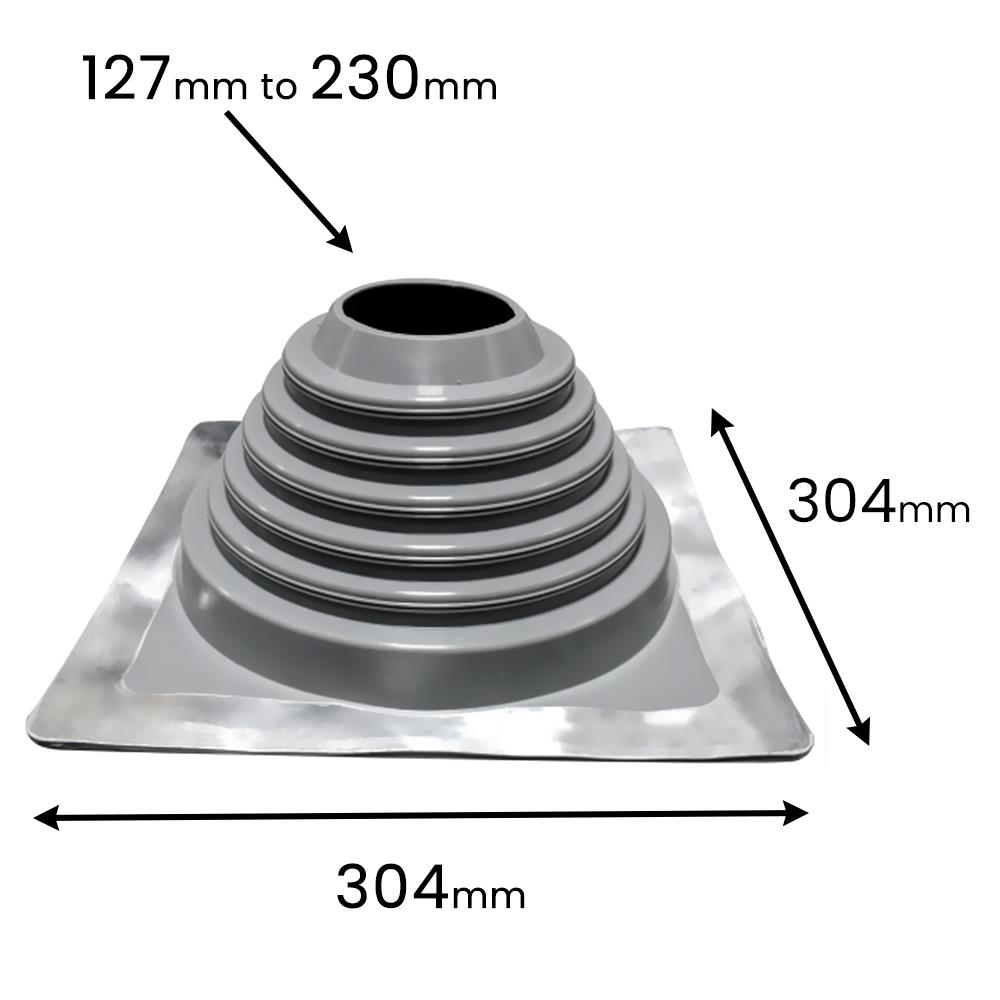

MI-Flash – No 6 Metal Grey SILICONE 127-228 mm Hi Temp

Model: 12-6HT

No 6 Silicone Masterflash 127-228 mm Hi Temp is Suitable for profiled sheeting and flat panel surfaces with external pipe diameters of (5 to 9 inch) / 127 to 228mm.

Application

Suitable for profiled sheeting and flat panel surfaces and is temperature resistance -74C to 260C

Rooof Pitch

Pitch – 0-45 degrees

Construction

Made of SILICONE, these flashings are componded specifically for maximum resistance to weathering due to ozone and ultraviolet light.Fast, one piece construction allows for easy on-site installation in usually 5 minutes.The base is designed to form a seal on most panel configurations and roof pitches regardless of pipe location.

Installation Check List

• Choose pipe opening and trim using a stanley knife or scissors
• Slide flashing over pipe (you may need to lubricate the flashing with some grease)
• Form the flashing to the same profile as the roof
• Apply sealant (not supplied)
• Fasten using the screws and caps (not spplied)
• ONE Standard Fixing Kit is required to install this flashing. (not supplied)
