Product Description

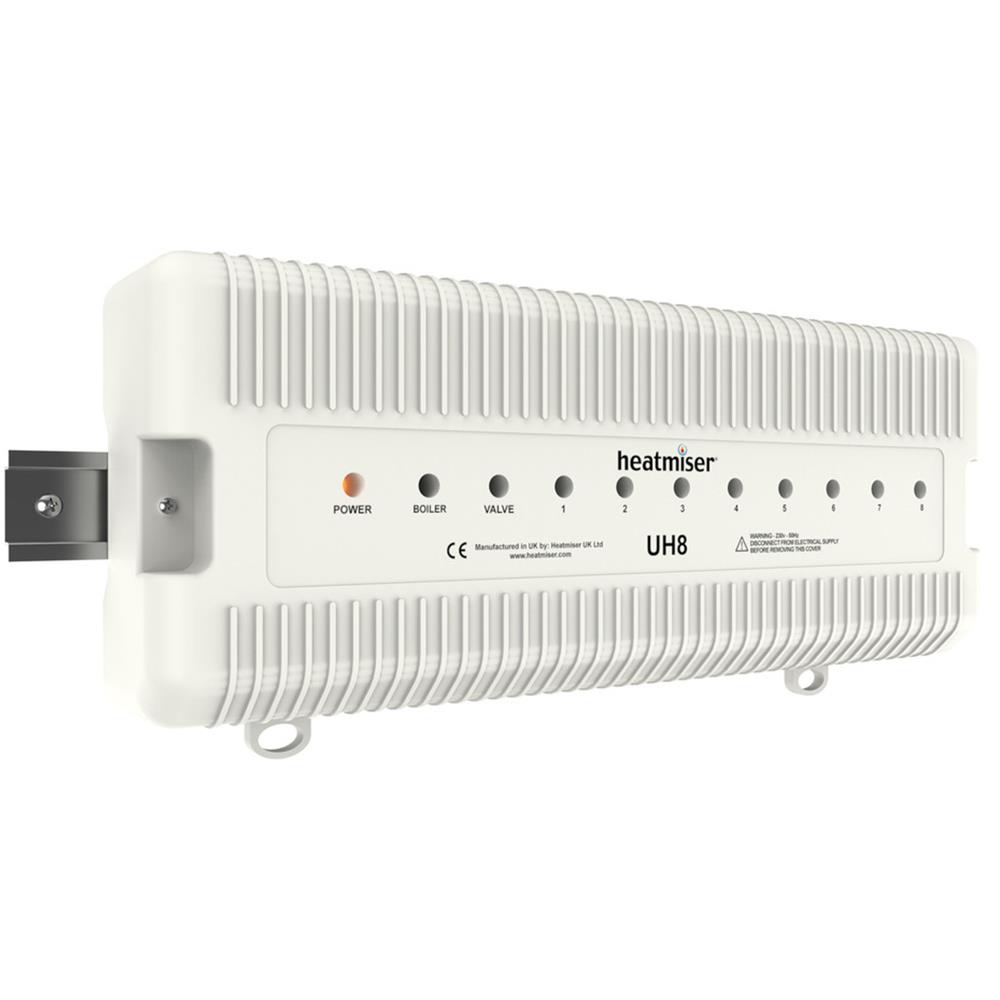

Heatmiser UFH 8 Zone Wiring Centre

Part no: UH8

The Heatmiser UH8 can be used in conjunction with our mains voltage thermostats.

The UH8 is also ideally suited for underfloor heating but can also control a single zone of radiators.

Heatmiser 8 Zone Wiring Centre Features:

• UH8 data sheet
• UH8 instruction sheet
• The UH8 provides central switching of up to 8 zone actuators
• Output for a hot water cylinder and the system boiler and pump.
• UH8 Dimensions 384x148x60mm

Up to 8 zones can be controlled from the UH8. On board the UH8 are two heating time channels, each zone allows you to specify which time channel it should follow. 2 additional time channel connections are provided for hot water control or other auxiliary devices. On demand from any zone, a 230v output is provided to switch the relevant zone actuator, underfloor heating pump and valve. A volt free connection is supplied for the boiler, making it compatible with almost all types of boilers.
