Product Description

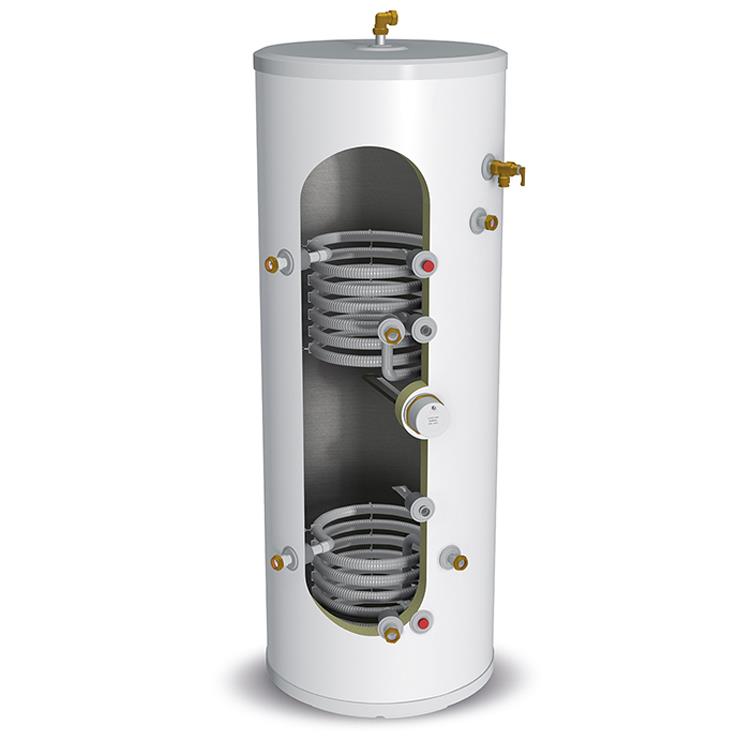

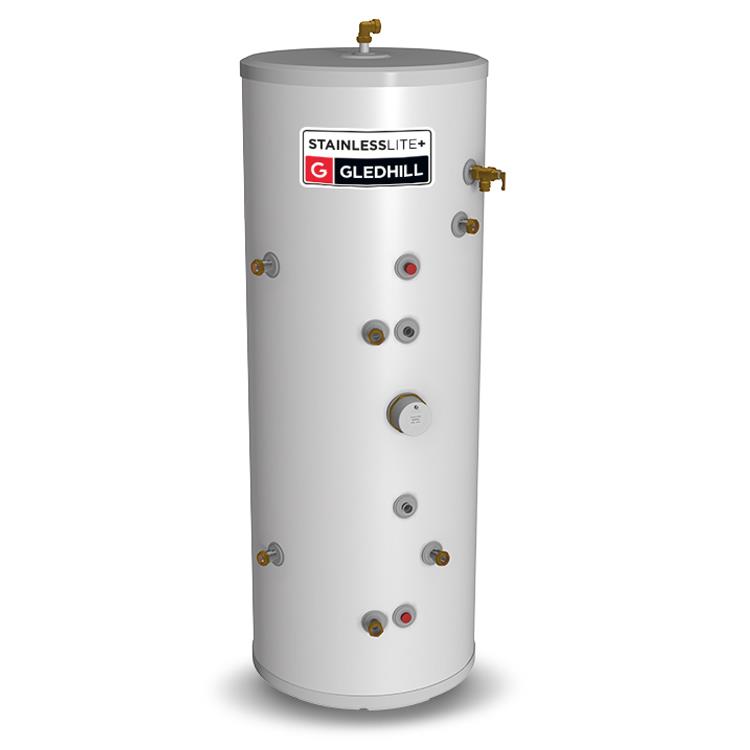

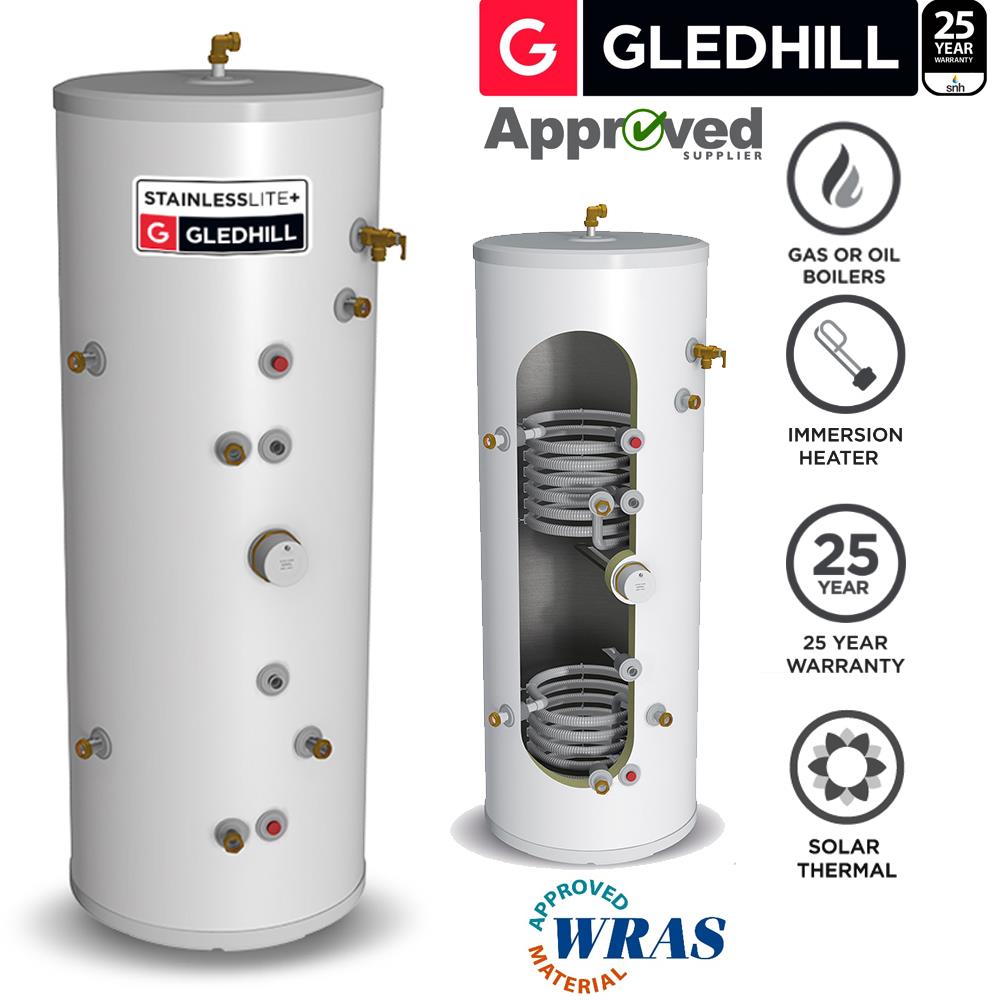

Gledhill Stainless lite Plus Solar Indirect

Model: PLUIN180S

PLEASE NOTE: Delivery for this item is Mainland England ONLY

Gledhill has developed a range of cylinders specifically for solar applications, therefore providing an efficient way of providing domestic hot water.

Gledhill Stainless lite Plus Solar Indirect Features:

• Gledhill Stainless lite Plus Solar Information Sheet
• Important – please down load the information sheet above for complete specification
• 25 Year Warranty
• Capacity 178 litres
• Height 1306mm
• Diameter 550mm
• Weight – empty 31KG, full 209KG
• ERP Rating B
• Secondary return – No
• Maximum inlet pressure 12 Bar
• Pressure reducing valve 3 Bar
• Max working pressure primary heat exchanger 3 Bar
• Max working pressure solar heat exchanger 6 Bar
• High density HCFC free Envirofoam insulation
• High specification duplex stainless steel

What Do You Get In The Box?

• 1 x Gledhill Stainless Lite Plus Solar Unvented Cylinder
• 1 x 3KW Incoloy immersion heater
• 1 x Cold water inlet PRV combination valve/expansion relief valve
• 1 x Pressure and temperature relief valve
• 1 x Control thermostat
• 1 x Energy cut-out motorised valve (indirect only)
• 1 x Expansion vessel with wall mounting kit
• 1 x Drain elbow and 90 degree elbow
• Tundish

Gledhill Stainless lite Plus is covered by Section G3 of the Building Regulations (England and Wales). Technical Standard P3 (Scotland) and Building Regulation P5 (Northern Ireland). Compliance can be achieved via a Competent Person Self Certification Scheme or notification of installation to the Local Authority Building Control Department.
