Product Description

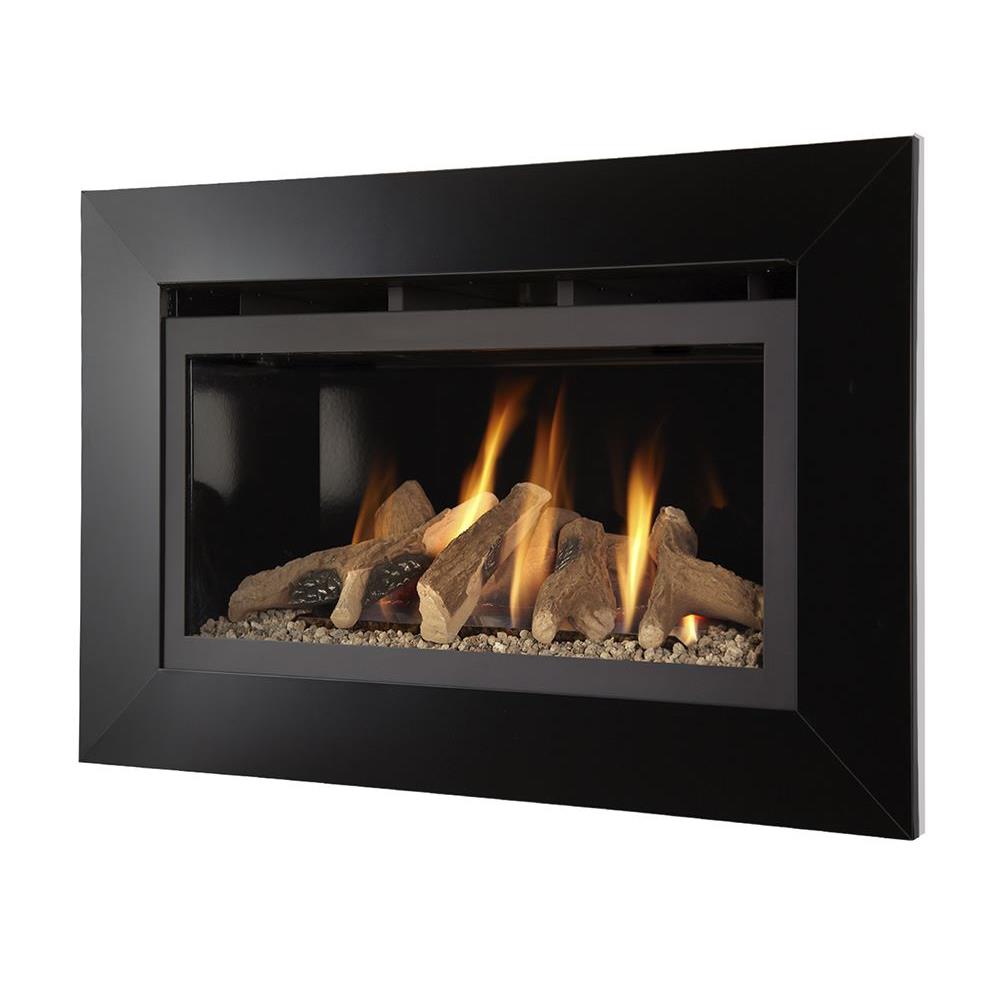

Flavel Jazz HE Black Gas Fire

Model : FHCL22RN

The petite dimensions of the Flavel Jazz HE gas fire make it perfect for modern living areas where space can be at a premium. This glass-fronted gas fire offers an outstanding 3.2 kW heat output. Operated by a fully automatic remote control system with thermostatic control.

Flavel Jazz HE Black Gas Fire Features:

• Flavel Jazz HE Installation Instructions
• Finish – Black
• Log fuel effectMax heat output – 3.2 KW
• High efficiency glass fronted gas fire
• Heat type – radiant & convected
• Full depth wall inset
• Thermostatic remote control

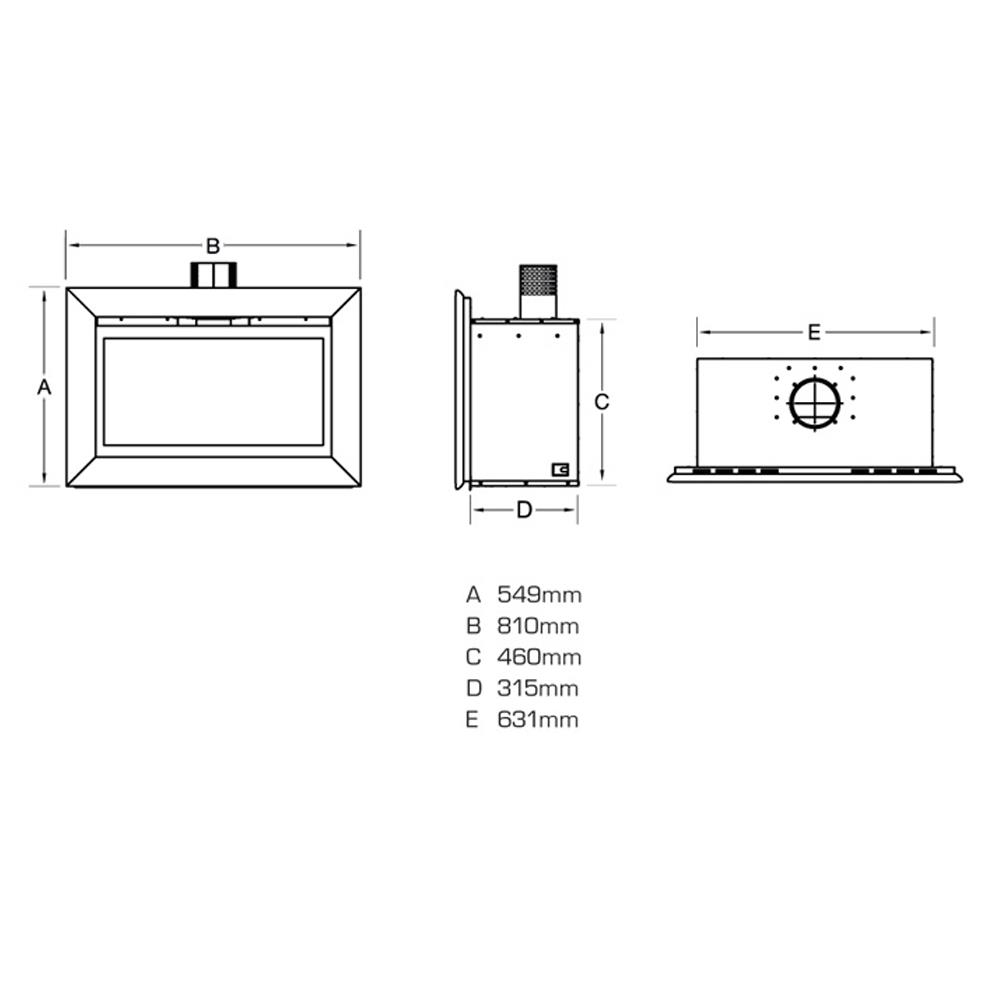

• Total width of fire 810mm
• Total height of fire 549mm
• Total depth 361mm
• Made In the UK
• Natural gas only
• Fully automatic remote control system

Flue and Chimney Suitability:

This appliance is designed for use with conventional brick built or lined chimneys and fabricated flues and metal flue boxes conforming to BS 715 / BS EN 1856-2.

All flues must conform to the following minimum dimensions.

This product requires a minimum effective flue height of 4.0 metres of minimum circular cross-sectional area 125mm. If installing the product into a 225mm x 225mm brick chimney, THE CHIMNEY SOUNDNESS MUST BE CHECKED BYTESTING prior to a decision being made on whether the chimney requires lining. If the flue height is greater than 10 metres on an external wall or 12 metres on an internal wall then a flue liner must be fitted even if the chimney integrity is ok.
