Product Description

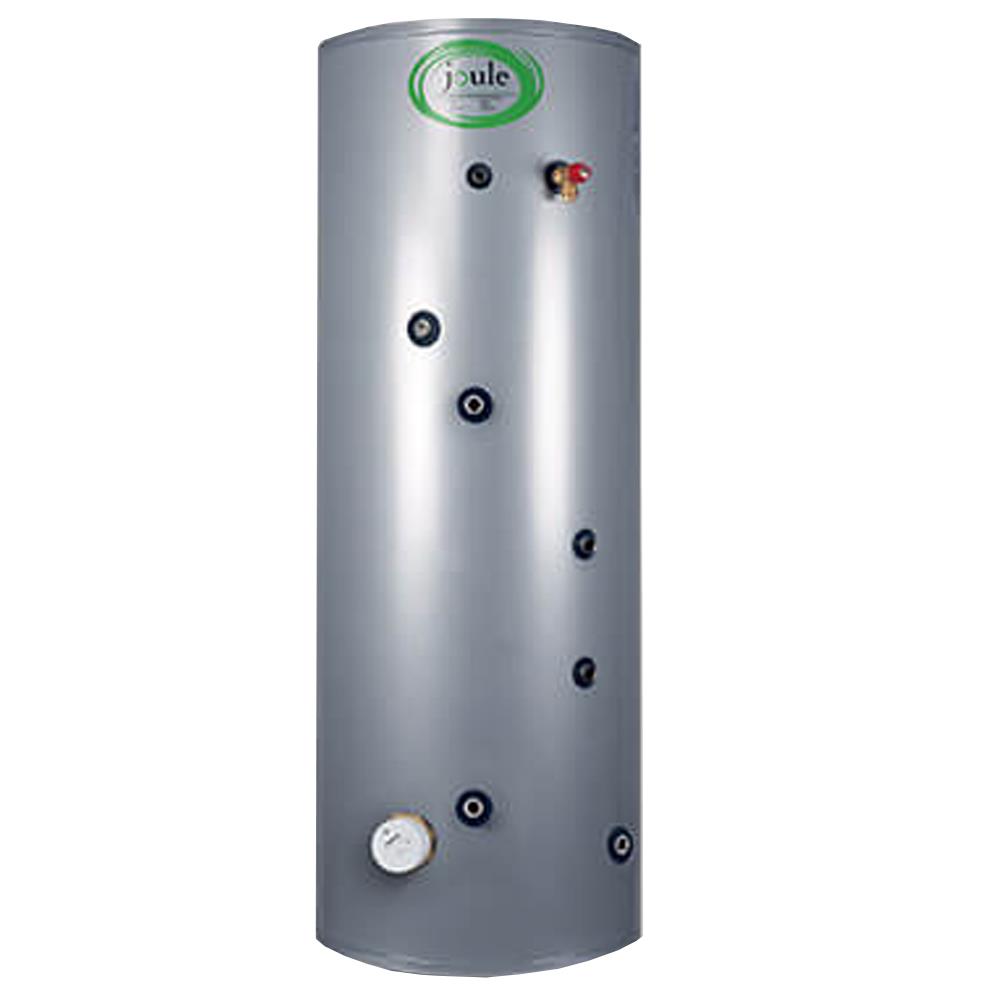

Joule Cyclone High Gain Unvented 250L Indirect Standard
Model: TCIMVH-0250LFC
PLEASE NOTE: Delivery for this item is Mainland England ONLY
For Heat Pump ready cylinders our coil quality sets us apart. Unlike most cheaper brands on the market the Joule Cyclone High Gain product line of cylinders use high recovery smooth tube coils for optimal performance.
Joule Cyclone High Gain Indirect Cylinder Features:
- Cyclone High Gain Information Sheet
- Cyclone High Gain Brochure
- Cyclone High Gain manual
- 25 Year Warranty on cylinder (terms apply)
- 2 Year Warranty on components
- Water Volume 247L
- Height 1770mm
- Diameter of cylinder 530mm
- ERP – C
- Single high recovery coil in coil
- Compression connections fitted as standard
- Pre plugged secondary tapping for ease of installation
- Dual heating zones plumbed and wired as standard
- Secondary return – Yes
- Maximum inlet pressure 10 Bar
- Maximum operating pressure 7 Bar
- Works with Air Source Heat pumps
What Do You Get In The Box?
- 1 x Cyclone High Gain cylinder
- 1 x 3KW Incoloy immersion heater
- 1 x Inlet Control Group
- 1 x Tundish
- 1 x Expansion vessel
- 1 x 2 Port valve
Additional Information
gtin | 5060518961373 |
---|---|
Manufacturer | Joule |
Brand | |
MPN | TCIMVH-0250LFC |
SKU | TCIMVH-0250LFC |
Unit Quantity | 1 |
EAN | 5060518961373 |
Warranty | 25 Year Warranty |
Shipping | Free Shipping |
Range | Heat Pump |
condition | new |
Woocategory1 | Heating & Cooling |
Woocategory3 | |
Woocategory2 | Hot Water Cylinders |
Country/Region of Manufacture | United Kingdom |
Energy Efficiency Rating | C |
Style | Heat Pump |
Width | 530 |
Height | |
Depth | 530 |
WRAS Approved | Yes |
PRIVATE NOTES | 9% |
ccp_Type | indirect |
Material | Stainless Steel |
Modified Item | No |
Custom Bundle | No |
Mounting | Floor |
Standards | WRAS Approved |
Mount Type | Floor Standing |
Litres | 201 – 250 |
Power Source | Electric |
Heating System | Storage Tank |
Manufacturer Warranty | 25 Year Warranty |
