Product Description

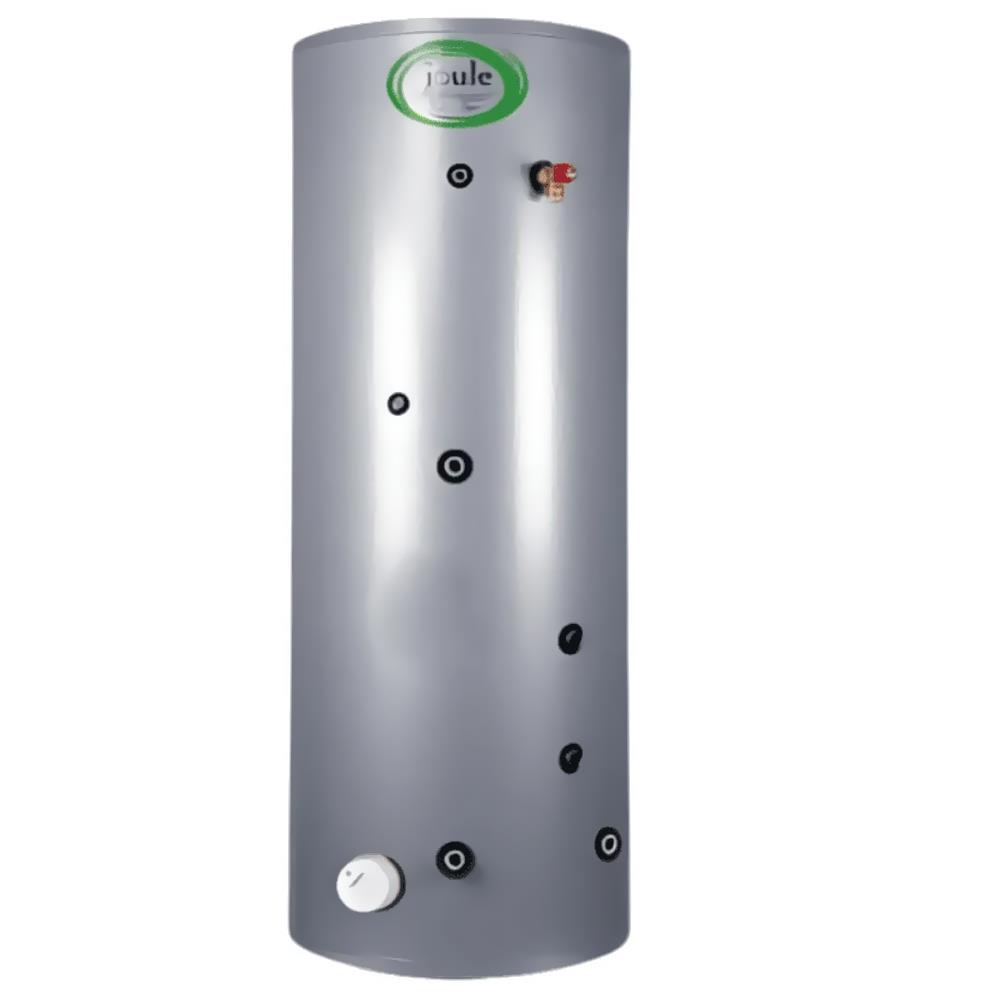

Joule Cyclone High Gain Unvented 150L Indirect Slimline

Model: TCIMVH-0150SFB

PLEASE NOTE: Delivery for this item is Mainland England ONLY

For Heat Pump ready cylinders our coil quality sets us apart. Unlike most cheaper brands on the market the Joule Cyclone High Gain product line of cylinders use high recovery smooth tube coils for optimal performance.

Joule Cyclone High Gain Indirect Cylinder Features:

• Cyclone High Gain Information Sheet
• Cyclone High Gain Brochure
• Cyclone High Gain manual
• 25 Year Warranty on cylinder (terms apply)
• 2 Year Warranty on components
• Water Volume 140L
• Height 1400mm
• Diameter of cylinder 475mm
• ERP – B
• Heat up time from coil – 10 mins
• Single high recovery coil in coil
• Compression connections fitted as standard
• Pre plugged secondary tapping for ease of installation
• Dual heating zones plumbed and wired as standard
• Secondary return – Yes
• Maximum inlet pressure 10 Bar
• Pressure reducing valve 3 Bar

What Do You Get In The Box?

• 1 x Cyclone High Gain cylinder
• 1 x 3KW Incoloy immersion heater
• 1 x Inlet Control Group
• 1 x Tundish
• 1 x Expansion vessel
• 1 x 2 Port valve
