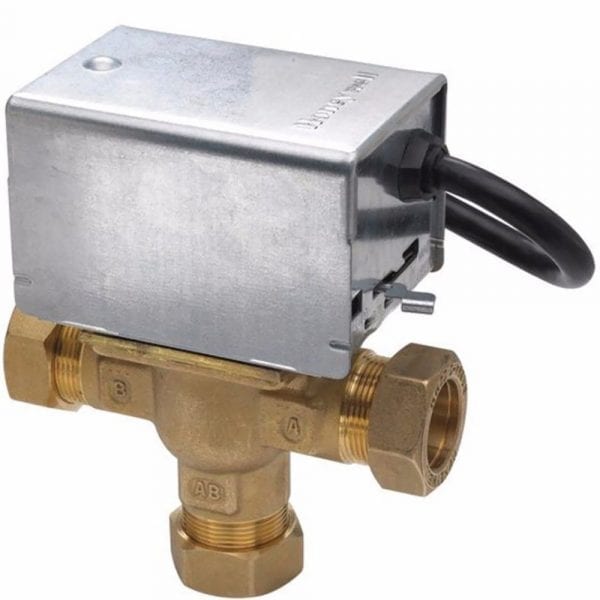

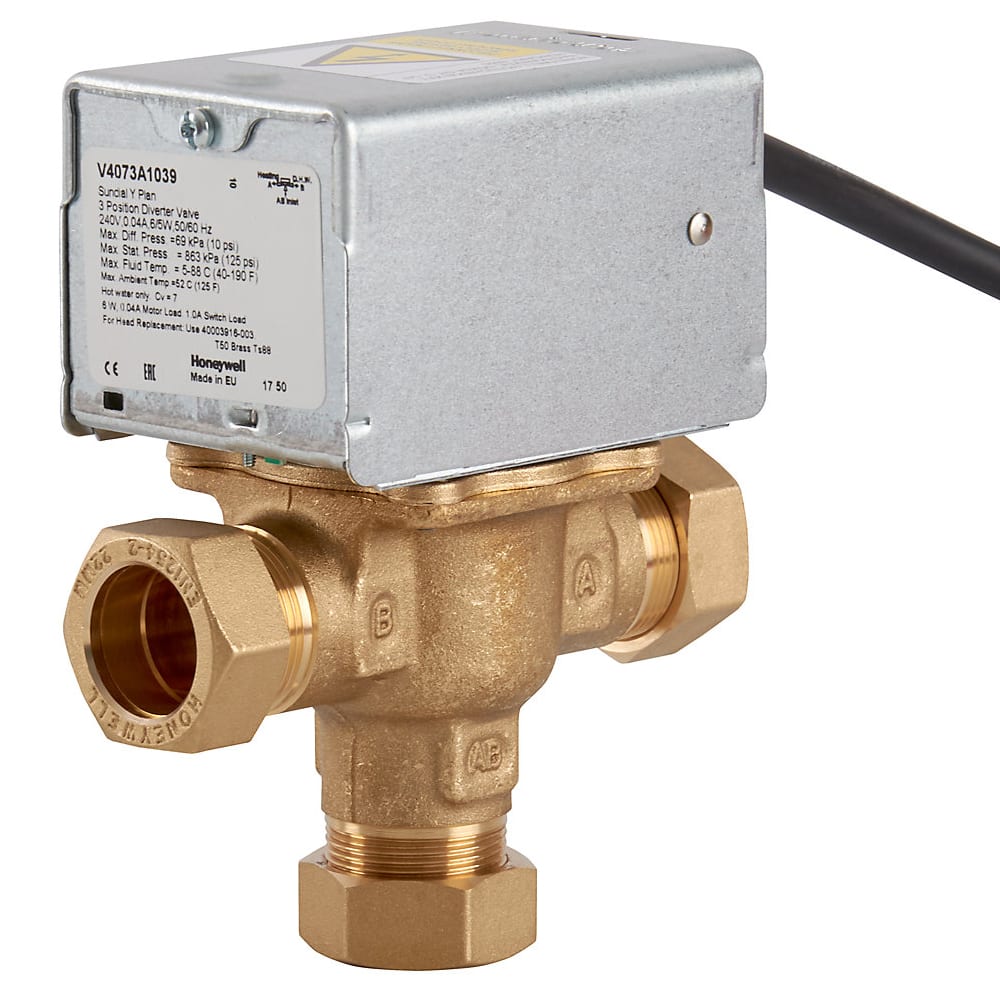

Honeywell 22mm Midposition Diverter Valve V4073A
Model : V4073H1039
The Honeywell 22mm Midposition Diverter Valve V4073A1039 has been designed to control the flow of water in domestic central heating systems, where both radiator and hot water cylinder circuits are pumped. It is typically suited for small to medium sized installations.
The V4073A Mid-position Diverter Valve should be used in conjunction with a room thermostat and cylinder thermostat to provide full temperature control of a conventional, fully pumped central heating installation. When used in this way, the control system is known as Sundial Y Plan and the components can be connected together using the Sundial Plan Wiring Centre which has dedicated terminations and there is no need for a wiring diagram.
Honeywell 22mm Midposition Diverter Valve V4073A Features:
- Honeywell 22mm Midposition Diverter Valve V4073A1039 installation guide
- Honeywell 22mm Midposition Diverter Valve V4073A1039 reference guide
- Spring return action
- Three position operation
- Powerhead replaceable without draining down
- Manual lever for filling/draining down
- Quiet operation, minimal power consumption
- Provides electrical output to boiler and/or pump
- 1 Year Warranty
Whats in the box:
- 1 x Honeywell 22mm Midposition Diverter Valve V4073A1039
Honeywell offer a 1 year guarantee against faulty workmanship or materials (excluding serviceable parts, neglect or abuse).
