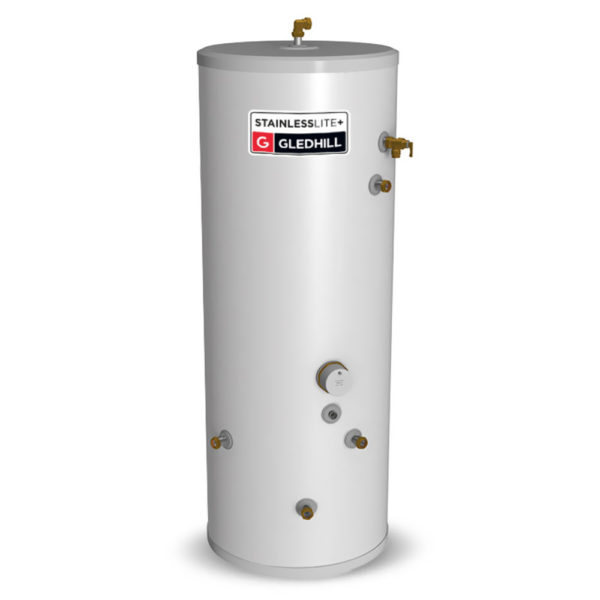

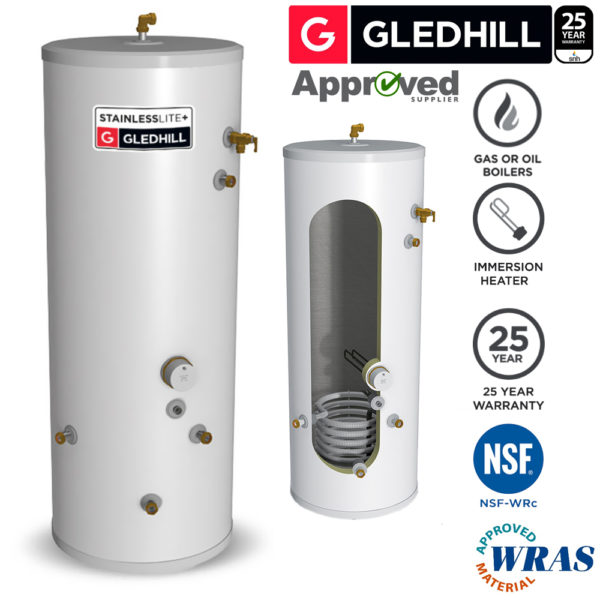

Gledhill Stainless Lite Plus IND120 Indirect Unvented Cylinder Stainless Steel

£550.25 £660.30 (inc vat)

In stock

Product Description

Gledhill Stainless lite Plus IND120 Indirect Unvented Cylinder Stainless Steel

Model: PLUIN120 (IND120)

PLEASE NOTE: Delivery for this item is Mainland England and Wales ONLY

Our StainlessLite Plus cylinders are pressure tested to a full 12 bar – four times their normal working pressure – and injected with 50mm of our HCFC free Enviro Foam insulation to achieve astonishingly low levels of heat loss, which maximises energy efficiency for your customers.

The unvented cylinder is manufactured from highly corrosion-resistant duplex stainless steel and is supplied with full NSF WRC and WRAS independent approvals. Delivers mains pressure hot water, enabling high flow rates for showers and baths, without the need for a boost pump.

Gledhill Stainless lite Plus IND120 Indirect Features:

  • Gledhill unvented cylinder installation guide
  • 25 Year Warranty
  • Capacity 119 litres
  • Height 931mm
  • Diameter 550mm
  • Weight – empty 23KG, full 142KG
  • Erp Rating B
  • Heat up time 21 minutes
  • Secondary return – No
  • Maximum inlet pressure 12 Bar
  • Pressure reducing valve 3 Bar
  • Max working pressure 6 Bar
  • 50mm insulation to reduce heat loss
  • Lightest cylinder on the market

What Do You Get In The Box?

  • 1 x Stainless Lite Plus Unvented cylinder
  • 1 x 3KW Incoloy 825 immersion heater
  • Expansion vessel with integral brackets supplied in the G3 kit
  • Lift up temperature and pressure relief valve
  • 3 Bar inlet control
  • Compression fittings supplied with unvented products
  • 90 degree elbow supplied on the hot water draw off to reduce installation time

Gledhill Stainless Lite Plus is covered by Section G3 of the Building Regulations (England and Wales). Technical Standard P3 (Scotland) and Building Regulation P5 (Northern Ireland).





Additional Information

Weight 30001 g
Manufacturer

Gledhill

Brand

MPN

PLUIN120

SKU

PLUIN120

Unit Quantity

1

Warranty

25 Year Warranty

Shipping

Free Shipping

Range

Indirect

condition

new

Woocategory1

Heating & Cooling

Woocategory3

Indirect Cylinders

Woocategory2

Hot Water Cylinders

Country/Region of Manufacture

United Kingdom

Energy Efficiency Rating

B

Style

Unvented Cylinder

Width

550mm

Height

Depth

550mm

WRAS Approved

Yes

Type

indirect

Material

Stainless Steel

Modified Item

No

Custom Bundle

No

Mounting

Floor

Standards

WRAS Approved

Mount Type

Floor Standing

Litres

101 – 150

Heating System

Storage Tank

Manufacturer Warranty

25 Year Warranty

Delivered by Gledhill Cylinders by their own vehicles.

Once Gledhill has allocated a delivery day for your order we will contact you by email to confirm this with you.

England & Wales   £33.00

Local Pick Up         FREE  (please allow 2 to 3 days after ordering.)

Scotland From       No Delivery

If you need more info, please call 01843 842727 Monday to Friday 8am to 5pm.

Unfortunately Gledhill cylinders do not deliver to Ireland, Scottish Islands or above Glasgow and Isle Of Wight.



StainlessLite Plus Installation Guide
