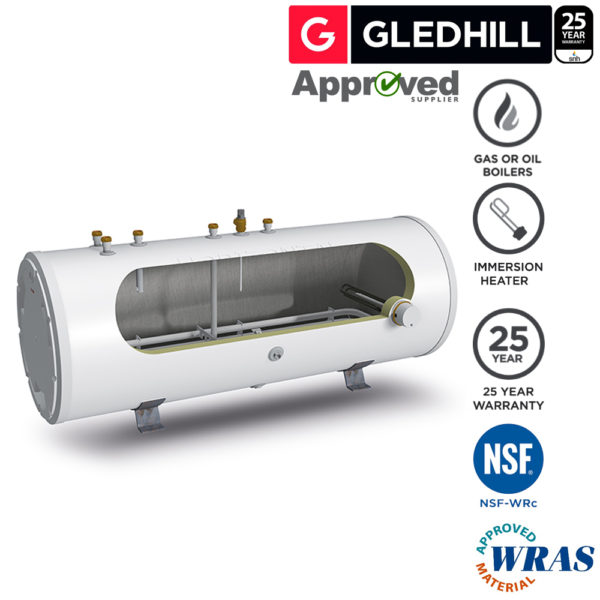

Gledhill Stainless Lite Plus Horizontal IND210 Indirect Unvented Cylinder

£1,048.30 £1,257.96 (inc VAT)

In stock

Product Description

Gledhill Stainless lite Plus Horizontal IND210 Indirect Unvented Cylinder

Model: PLUIN210H (IND210)

PLEASE NOTE: Delivery for this item is Mainland England ONLY

The unvented cylinder is manufactured from highly corrosion-resistant duplex stainless steel and is supplied with full NSF WRC and WRAS independent approvals. Delivers mains pressure hot water, enabling high flow rates for showers and baths, without the need for a boost pump.

Gledhill Stainless lite Plus Horizontal IND210 Indirect Features:

  • Gledhill unvented cylinder installation guide
  • 25 Year Warranty
  • Capacity 206 litres
  • Overall Height 588mm
  • Overall Width1494mm
  • Diameter 550mm
  • Weight – empty 31KG, full 237KG
  • Erp Rating C
  • Heat up time 27 minutes
  • Secondary return – Yes
  • Maximum inlet pressure 12 Bar
  • Pressure reducing valve 3 Bar
  • Max working pressure 6 Bar
  • 50mm insulation to reduce heat loss
  • Lightest cylinder on the market

What Do You Get In The Box?

  • 1 x Stainless Lite Plus Unvented cylinder
  • 1 x 3KW Incoloy 825 immersion heater
  • Expansion vessel with integral brackets supplied in the G3 kit
  • Lift up temperature and pressure relief valve
  • 3 Bar inlet control
  • Compression fittings supplied with unvented products
  • 90 degree elbow supplied on the hot water draw off to reduce installation time

Gledhill Stainless Lite Plus is covered by Section G3 of the Building Regulations (England and Wales). Technical Standard P3 (Scotland) and Building Regulation P5 (Northern Ireland). Compliance can be achieved via a Competent Person Self Certification Scheme or notification of installation to the Local Authority Building Control Department.





Additional Information

Weight 30001 g
Size

206 Litre

gtin

5056188306019

Manufacturer

Gledhill

Brand

MPN

PLUIN210H

SKU

PLUIN210H

Unit Quantity

1

EAN

5056188306019

Warranty

25 Year Warranty

Shipping

Free Shipping

Range

Horizontal

condition

new

Woocategory1

Heating & Cooling

Woocategory3

Indirect Cylinders

Woocategory2

Hot Water Cylinders

Country/Region of Manufacture

United Kingdom

Energy Efficiency Rating

C

Style

Unvented Cylinder

Width

1494mm

Height

WRAS Approved

Yes

ccp_Type

indirect

Material

Stainless Steel

Custom Bundle

No

Modified Item

No

Mounting

Floor

Standards

WRAS Approved

Mount Type

Floor Standing

Litres

201 – 250

Heating System

Storage Tank

Manufacturer Warranty

25 Year Warranty

Delivered by Gledhill Cylinders by their own vehicles.

Once Gledhill has allocated a delivery day for your order we will contact you by email to confirm this with you.

England & Wales   £33.00

Local Pick Up         FREE  (please allow 2 to 3 days after ordering.)

Scotland From       No Delivery

If you need more info, please call 01843 842727 Monday to Friday 8am to 5pm.

Unfortunately Gledhill cylinders do not deliver to Ireland, Scottish Islands or above Glasgow and Isle Of Wight.



StainlessLite Plus Horizontal installation guide
