Product Description

Flavel Diamond HE Coal Gas Fire

Model : FHDC00RN3

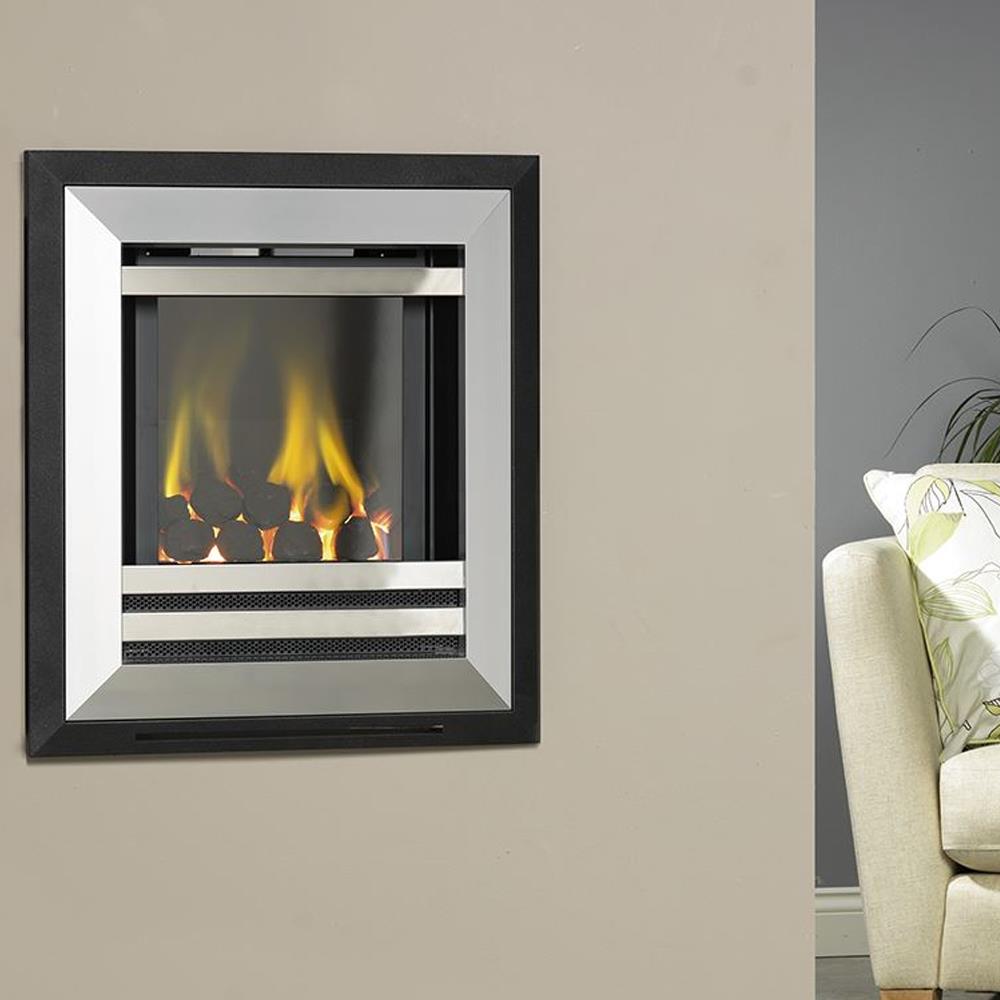

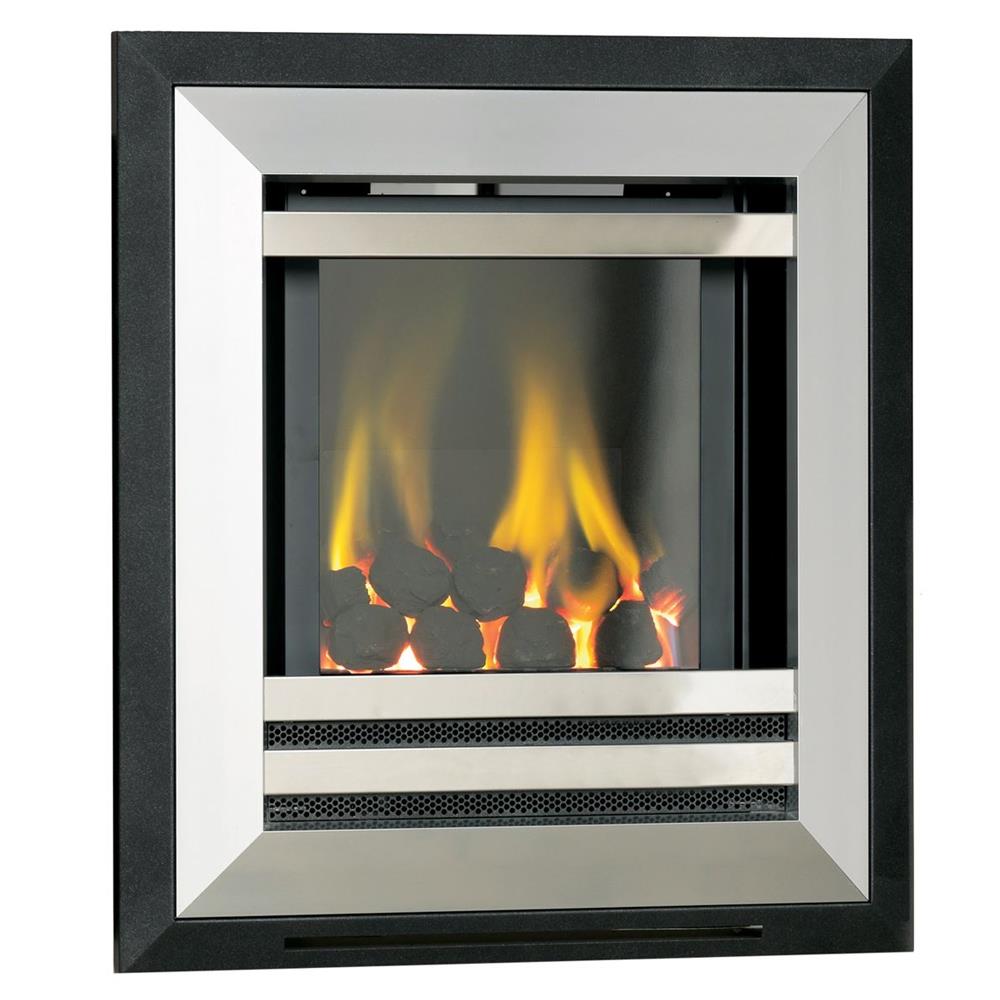

This glass fronted fire features a stunning “Diamond” fascia, with textured Black finish on the outer frame, and satin silver on the inner frame. This glass-fronted gas fire offers an outstanding 3.4 kW heat output. Operated by a Thermostatic remote control.

Flavel Expression HE Chrome Gas Fire Features:

• Flavel Diamond HE Installation Instructions
• Finish – Textured Black outer frame and satin silver on the inner frame
• Coal fuel effectMax heat output – 3.4 KW
• High efficiency glass fronted gas fire
• Heat type – radiant & convected
• Mid depth inset
• Thermostatic remote control

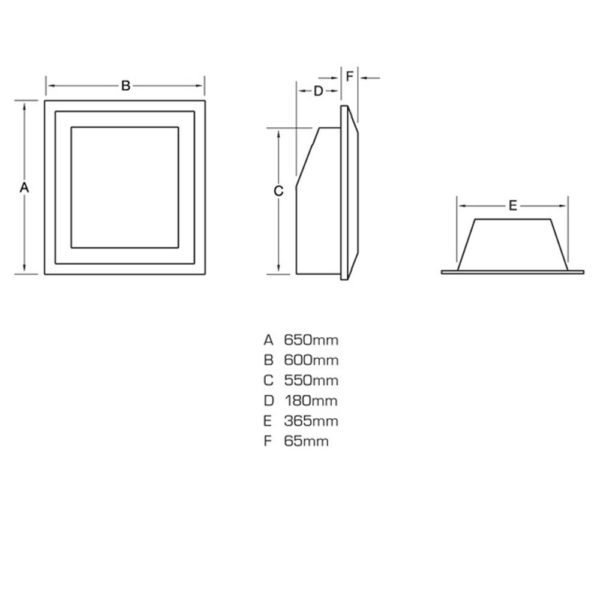

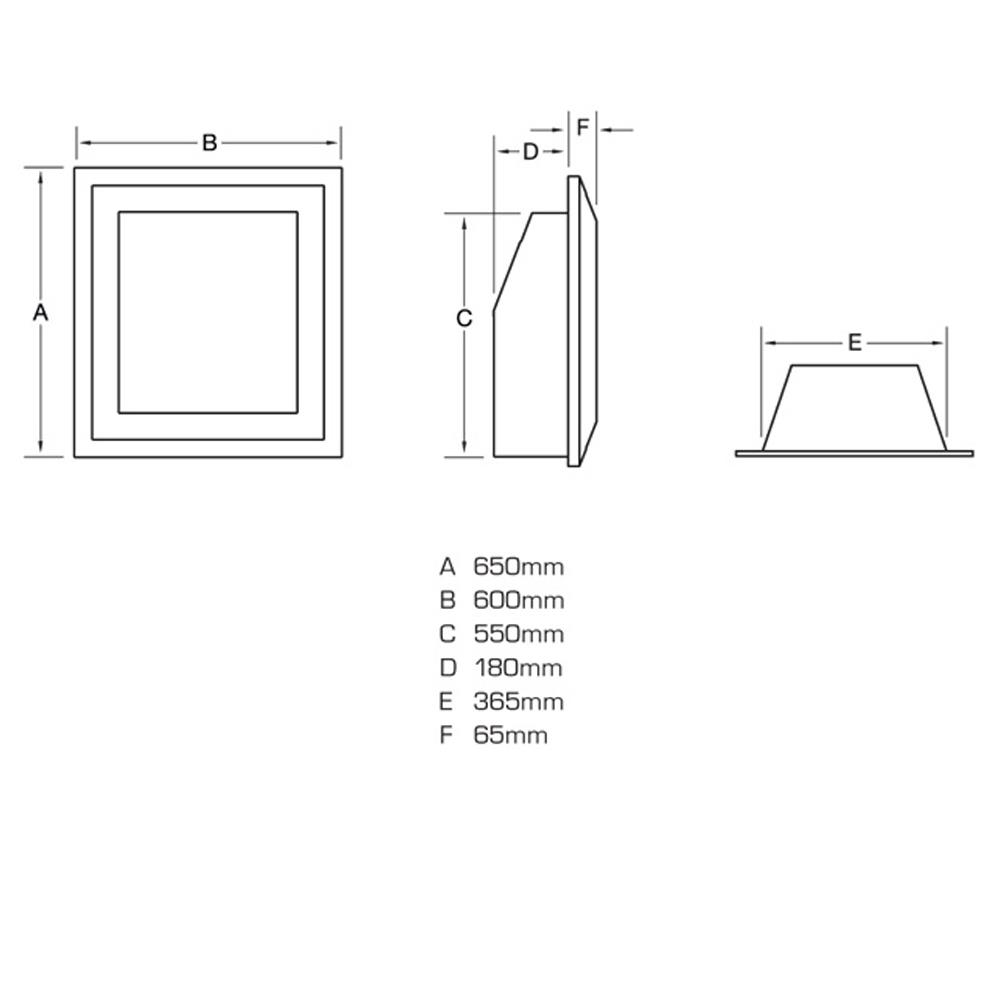

• Total width of fire 600mm
• Total height of fire 650mm
• Total depth 180mm
• Made In the UK
• Natural gas only

Flue and Chimney Suitability:

This appliance is designed for use with conventional brick built or lined chimneys and fabricated flues and metal flue boxes conforming to BS 715 / BS EN 1856-2.

All flues must conform to the following minimum dimensions.

• Minimum diameter of circular flues 125 mm
• Minimum effective height of all Class 1 (175mm) flues 4 metres
• Minimum effective height of all Class 2 (125mm) flues 4 metres
