Product Description

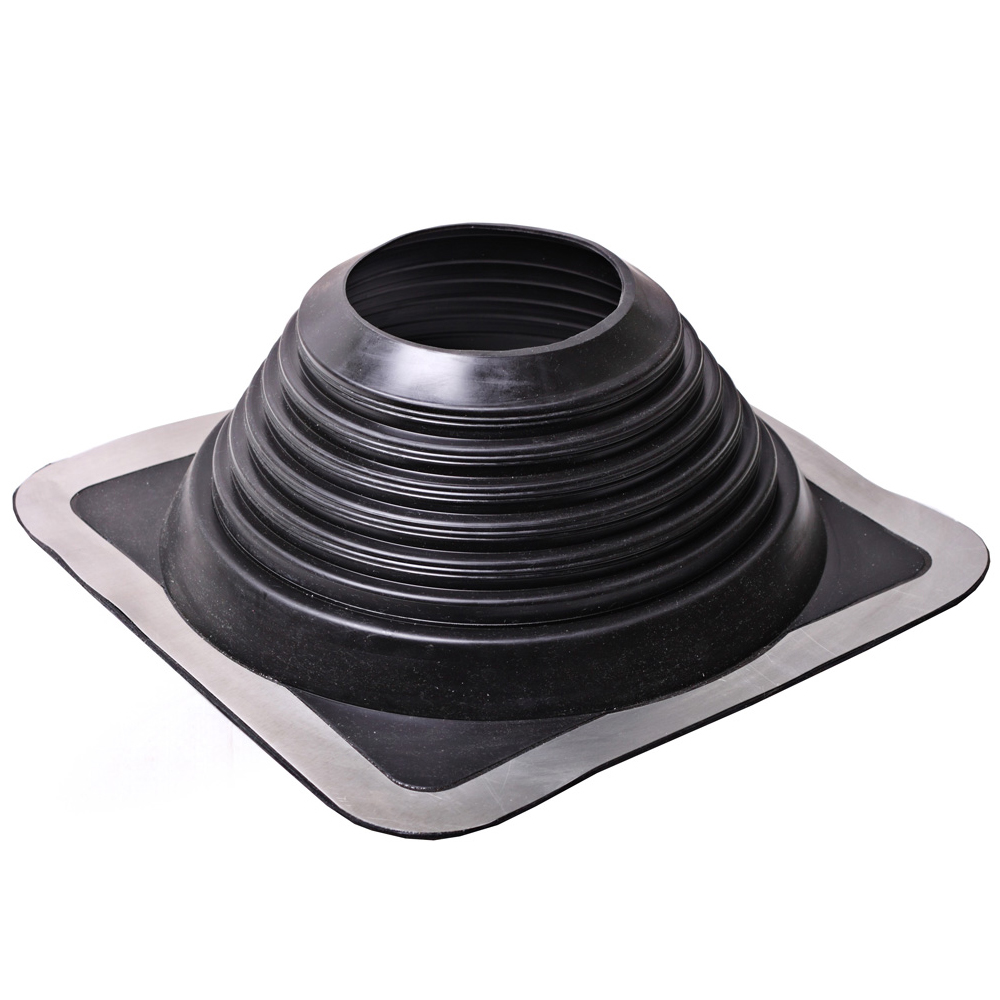

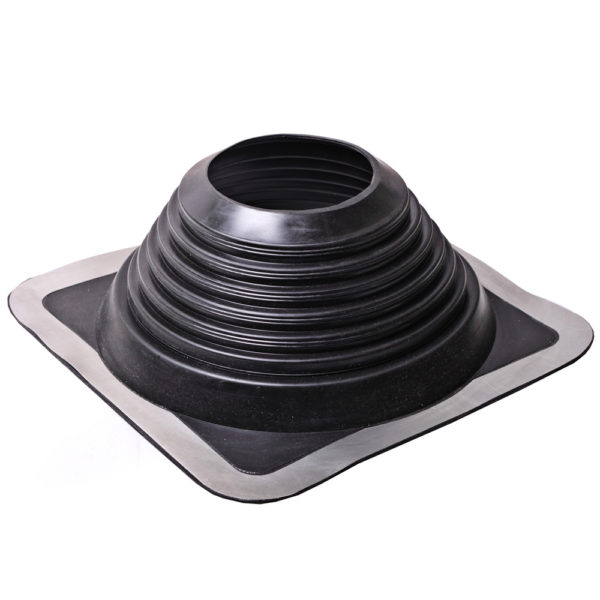

No6 EPDM Masterflash 127mm to 228mm

Model:12-601

Suitable for profiled sheeting and flat panel surfaces with external pipe diameters of (5 to 9 inch) / 127 to 228mm.

Application

Suitable for profiled sheeting and flat panel surfaces and is temperature resistance -55C to 135C.

Rooof Pitch

Pitch – 0-45 degrees

Construction

Made of EPDM, these flashings are componded specifically for maximum resistance to weathering due to ozone and ultraviolet light.

Fast, one piece construction allows for easy on-site installation in usually 5 minutes. The base is designed to form a seal on most panel configurations and roof pitches regardless of pipe location.

Installation Check List

• Choose pipe opening and trim using a stanley knife or scissors
• Slide flashing over pipe (you may need to lubricate the flashing with some grease)
• Form the flashing to the same profile as the roof
• Apply sealant (not suppplied)
• Fasten using the screws and caps (not supplied)
