904 Solid Fuel Stainless Steel Flue Liner 6 inch 150mm Kit 1
Model: 904/904 liner Kit 1, 6 inch
Multi fuel flexible liner made from 904L grade stainless steel – LIFE TIME manufacturers warranty on the 904 liner and 10 year warranty on the components (conditions apply). A double skinned flexible flue liner suitable for relining within a masonry chimney. Flue liner is suitable for use with burning gas, oil, coal, coke, cured dry logs, cured dry peat. If the appliance is mainly going to be used to burn wood, and the appliance is not DEFRA approved you should increase the diameter of the Flue Liner to 150mm (providing this will fit in the masonry chimney), as recommended by Building Regulations.

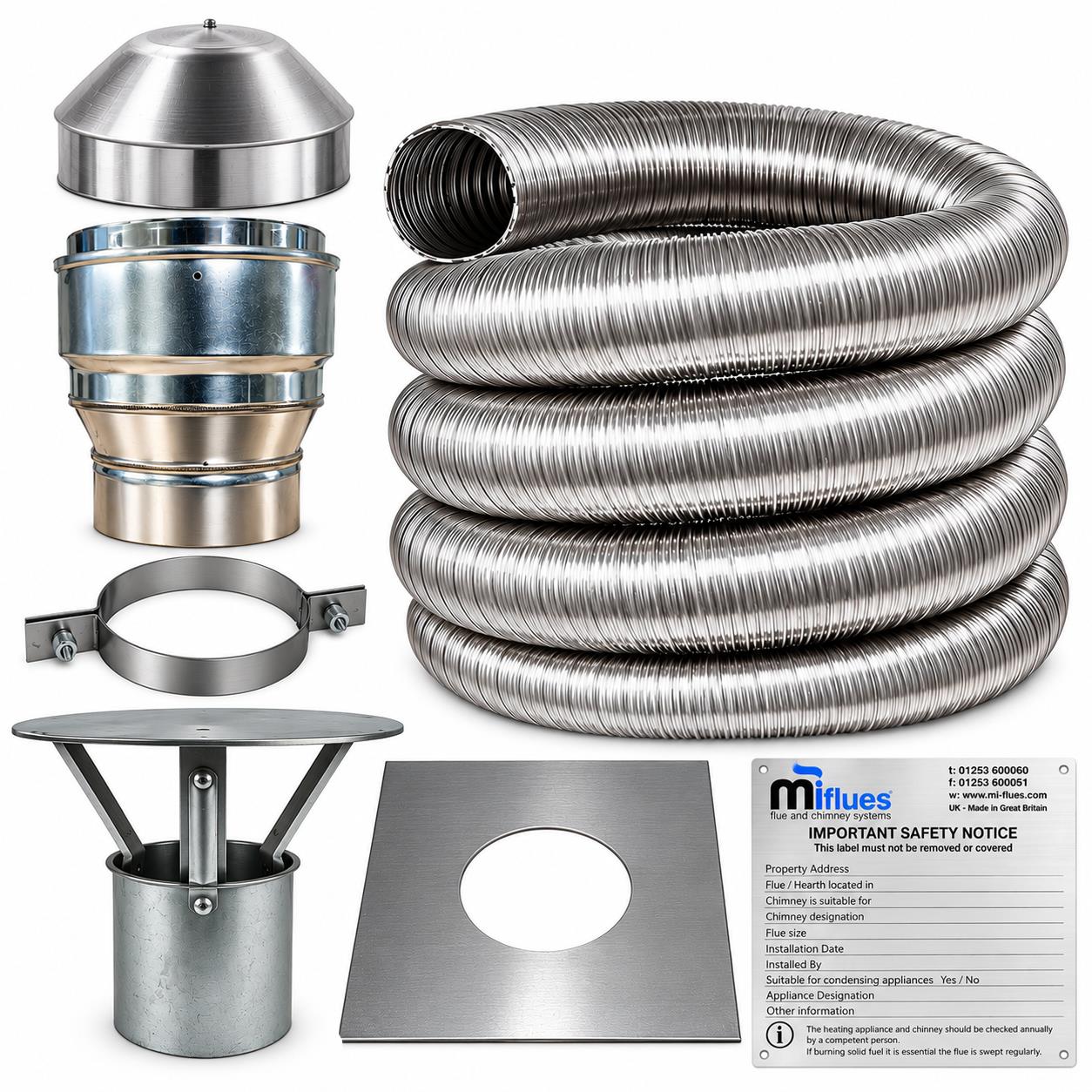

What’s Included in The Kit
- 6 inch 904 Flue Liner per meter is approved and listed by HETAS EN1856-2 T450 N1 D V 3 L50012 G
- Nose cone
- Top Clamp
- Top Plate
- ID Plate
- Inset Rain Cap
- Equal Vitreous to Flue Liner Adaptor
- Approval – Listed by HETAS EN1856-2 T450 N1 D V 3 L50012 G
- Fuels – Wood, Oil, Gas, Low Sulphur Coal
The flue liner has a smooth inner liner made from 904L grade stainless steel and is 0.105mm thick. The flue liner has a convoluted outer skin made from 904L stainless steel and is 0.105mm thick. The Flue Liner is constructed from a single strip of steel which is bent at 180 degrees and then the seam is folded in four planes to give a quattrolock seal.
Installation Check List
Make sure the liner will go down the chimney (this can be done by pulling down a small section of the diameter liner you will be using)Sweep your chimney.
Check you pot is in good condition, if you are NOT using a suspended cowl then remove the pot from the stack. Installation Flue Liner should always be fitted from the top.
Make sure the arrows are pointing upwards (gas flow).Secure a piece of string (at least the same length as the Flue Liner to the Nose Cone (order separately).Now attach the Nose Cone onto the end of the Flue Liner, again making sure the arrows on the Flue Liner are pointing away from the Nose Cone in a upward direction so when the liner is installed the arrows will be pointing to the top of the chimney.
Pull the liner down the chimney using the string and at the same time have someone at the top of the chimney feeding the Flue Liner down, once the Flue Liner is fitted remove the Nose Cone.
You need to register the manufacturers warranty with this product, To register for a Your warranty Life Time Warranty Form Failure to register will reduce the warranty to 1 year
It is recommended that chimneys serving solid fuel appliances be swept and maintained as frequently as necessary but at least once a year.
IMPORTANT BEFORE YOU BUY
Make sure you are ordering the correct size and length as this item is a made to measure service and cannot be returned Once ordered.
